Description
Technical data of carbide cutter fi 3
- working diameter d1 - 3 mm,
- shank diameter d2 - 4 mm,
- length of working part l2 - 8 mm,
- total length l1 - 50 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 3 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,013÷0,019 |
| M | Stainless steels | 50 | 0,014 |
| K | Cast iron | 87÷100 | 0,012÷0,019 |
| N | Aluminum | 167 | 0,022÷0,032 |
| H | Hardened materials | 40 | 0,012 |

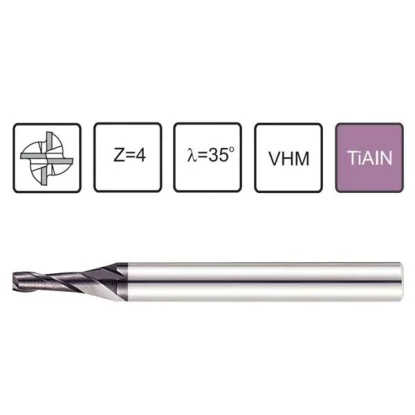

Fork milling cutter fi 3 VHM
VHM millingcutter fi 3 mm diameter D -3 Z-4 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide cutter 3 VHM, D-3, Z-4 diameter, face cylindrical with reinforced shank, made of a special grade of VHM 45 HRC carbide. It is suitable for machining alloy steels, stainless steel acid-resistant steel, heat-resistant and heat-resistant steel, cast steel, cast iron and other surface-hardened materials. The advantage of using special carbide is the ability to cut hard materials at high speed, even at high temperature. VHM carbide fi 3 cutters are recommended for professional line machining, profiling, copying, making channels and grooves. Their advantage is the increased resistance to harsh cutting conditions, including, in particular, the high temperature generated in the process of cutting at high speed. The cutters are suitable for machine tools with higher rigidity (with low runout) as well as for conventional machine tools.
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
