Description
Technical data of carbide cutter fi 24
- working diameter d1 - 24 mm,
- shank diameter d2 - 24 mm,
- length of the working part l2 - 45 mm,
- total length l1 - 100 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 24 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,095÷0,136 |
| M | Stainless steels | 50 | 0,030 |
| K | Cast iron | 87÷100 | 0,060÷0,079 |
| N | Aluminum | 167 | 0,089 |
| H | Hardened materials | 40 | 0,044 |

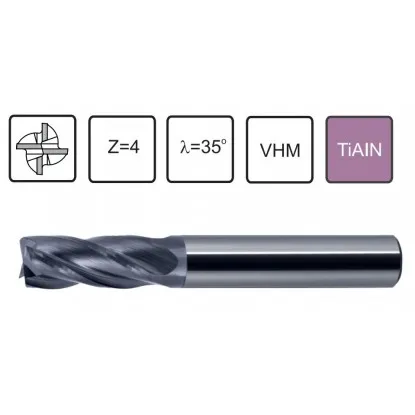

Carbide end mill 24 VHM
Carbide end mill 24 Z-4 VHM 45 HRC is a solid carbide (VHM) cutter for machining carbon and low-alloy steels, austenitic stainless steels and cast iron with hardness up to 45 HRC. In production applications, the fi 24 carbide cut ter will appreciate its high rigidity and stable roughness control, while the Z-4 arrangement ensures even load distribution and predictable chip form when working on CNC centers.
The 24 mm diameter limits deflection at wider milling widths, making it easier to maintain tolerances on planes and contours. In practice, Z-4 carbide cut ter machining works well in planing, side milling and pocketing and grooving, combining performance with dimensional repeatability. For users looking for reliability in steels and cast iron, well-chosen cutting parameters and edge geometry maximize the potential offered by VHM carbide cutters up to 45 HRC.
Benefits
- Diameter fi 24 - high rigidity - less deflection of the cutter and a more stable cutting pattern with a large milling width.
- Z-4 configuration - four blades reduce cutter vibration and promote higher feed per tooth while maintaining finish quality.
- VHM up to 45 HRC - efficient machining of carbon steels, low-alloy steels, austenitic stainless steels, and gray and ductile iron.
- Repeatability and accuracy - predictable chip form and smooth surfaces promote tolerances in batch production.
Carbide end mill 24 Z-4 VHM 45 HRC is recommended for efficient planning and side milling in steel and cast iron when process stability and consistent surface quality are key.
