Description
Technical data of carbide cutter fi 12
| Technical data | |
|---|---|
| Working diameter d1 | 12 mm |
| Shank diameter d2 | 12 mm |
| Length of working part l2 | 25 mm |
| Overall length l1 | 75 mm |
| Number of blades | 4 |
Cutting parameters of carbide cutter fi 12 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-75 | 0,072-0,103 | 1592 | 458 |
| M | Stainless steel | 50 | 0,026 | 1327 | 138 |
| K | Cast iron | 87-100 | 0,047-0,055 | 2309 | 434 |
| N | Aluminum | 167 | 0,058 | 4432 | 1028 |
| H | Hardened materials | 40 | 0,034 | 1062 | 144 |
Pitchfork milling cutter fi 12 VHM

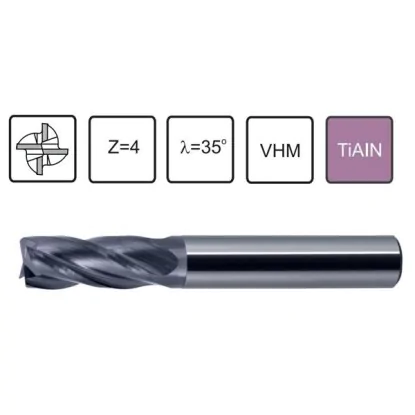

VHM millingcutter fi 12 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide cutter 12 VHM, D -12 Z-4 cylindrical face full carbide, with smooth cylindrical shank DIN6535 HA, with TiAIN coating. A special fine-grained universal carbide was used in the production of cutters. It is a carbide that gives the cutters exceptional hardness and durability, as well as resistance to very harsh cutting conditions. VHM carbide burrs are used for profiling, drilling, copying, making channels and grooves. Carbide milling cutters fi 12 are characterized by increased resistance to very heavy cutting conditions, as well as resistance to any mechanical damage. The benefits of fine-grained carbide are mainly: increased strength, good adhesion to the substrate, high resistance to abrasive wear, retention of hardness at high temperatures, and high resistance to oxidation.
