Description
Technical data of carbide cutter fi 14
| Technical data | |
|---|---|
| Working diameter d1 | 14 mm |
| Shank diameter d2 | 14 mm |
| Length of working part l2 | 35 mm |
| Overall length l1 | 100 mm |
| Number of blades | 4 |
Cutting parameters of carbide cutter fi 14 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-75 | 0,074-0,105 | 1365 | 404 |
| M | Stainless steel | 50 | 0,027 | 1137 | 123 |
| K | Cast iron | 87-100 | 0,051-0,059 | 1979 | 404 |
| N | Aluminum | 167 | 0,064 | 3799 | 973 |
| H | Hardened materials | 40 | 0,036 | 910 | 131 |

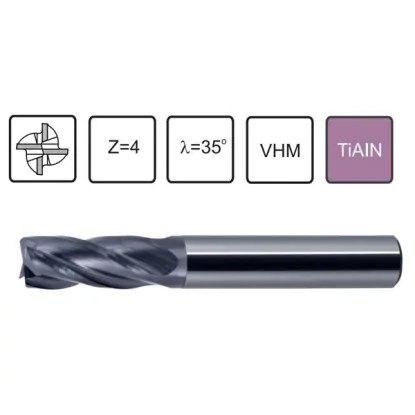

Pitchfork milling cutter fi 14 VHM
VHM millingcutter fi 14 mm diameter D -14 Z-4 cylindrical face full carbide, with TiAIN coating, fine-grained universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 14 VHM, widia millingcutter, designed for professional machining of hard and hard-to-machine materials. It is a solid carbide end mill with a smooth cylindrical shank DIN 6536 HA. The cutter is made of universal fine-grain carbide, with TiAIN coating. Such milling cutter design guarantees high machining efficiency and, at the same time, high precision. Carbide milling cutters fi 14 fork offered in our store are suitable for cutting objects made of alloy steels, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron and other hard surface-hardened materials. The cutters are suitable for profiling, making channels and grooves, as well as for copying and line machining. Their advantage is their increased resistance to very harsh machining conditions, including, in particular, very high temperatures created during high-speed cutting.
