Description
Technical data of carbide cutter fi 26
- working diameter d1 - 26 mm,
- shank diameter d2 - 26 mm,
- length of the working part l2 - 45 mm,
- total length l1 - 110 mm,
- number of blades - Z - 4.
Cutting parameters of carbide cutter fi 26 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷75 | 0,095÷0,136 |
| M | Stainless steels | 50 | 0,030 |
| K | Cast iron | 87÷100 | 0,060÷0,079 |
| N | Aluminum | 167 | 0,089 |
| H | Hardened materials | 40 | 0,044 |

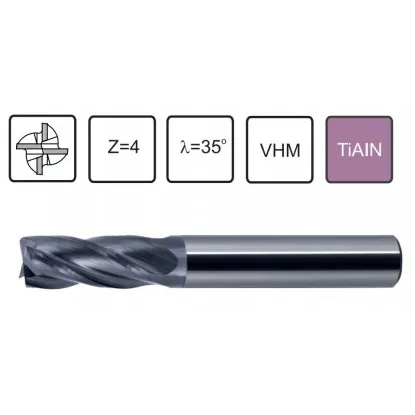

Carbide end mill 26 VHM
Carbide end mill 26 Z-4 VHM 45 HRC is a solid carbide (VHM) cutter for machining structural and alloy steels, austenitic stainless steels and cast iron at hardnesses up to 45 HRC.
The larger diameter fi 26 increases inertia and vibration dampening, which promotes stable operation over wide milling widths and improves process predictability in long contour passes.
The Z-4 configuration guarantees four effective cutting edges and uniform loading, making the cutter suitable for roughing and semi-finishing operations while maintaining controlled roughness and dimensional repeatability.
Benefits
- Diameter fi 26 - effective vibration dampening - greater stability translates into higher productivity and predictable contour guidance.
- Z-4 - equal force distribution - four blades improve surface smoothness and enable higher feed rates without compromising quality.
- VHM up to 45 HRC - material compatibility - efficient machining of carbon steels, low-alloy steels, austenitic stainless steels and cast iron.
- Repeatability in CNC - predictable chip shape and stable results make it easier to maintain tolerances in mass production.
Carbide end mill 26 Z-4 VHM 45 HRC is recommended for planning, side milling and pocket machining in steels and cast iron when process stability and consistent surface quality are required.
