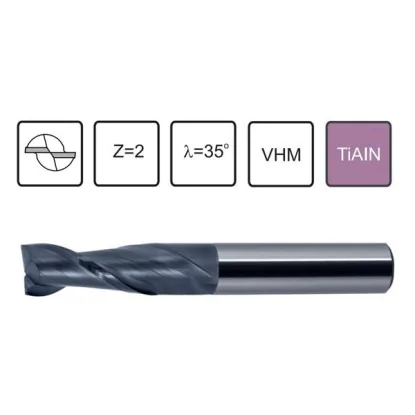

Carbide end mill 16 Z-2 VHM 45 HRC
Horn Horn
0000004278
€59.88 tax inc.
Net price: €48.68
Out of stock
Description
Technical data of carbide cutter fi 16
| Technical data | |
|---|---|
| Working diameter d1 | 16 mm |
| Shank diameter d2 | 16 mm |
| Length of working part l2 | 45 mm |
| Overall length l1 | 100 mm |
| Number of blades | 2 |
Cutting parameters of carbide cutter fi 16 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-70 | 0,078-0,112 | 1194 | 186 |
| M | Stainless steel | 50 | 0,014 | 995 | 28 |
| K | Cast iron | 87-100 | 0,055-0,070 | 1732 | 191 |
| N | Aluminum | 150 | 0,053 | 2986 | 317 |
| H | Hardened materials | 40 | 0,042 | 796 | 67 |
Pitchfork milling cutter fi 16 VHM
VHM millingcutter fi 16 mm diameter D-16 Z-2 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 16 VHM, widia, shank millingcutter with diameter D-16 Z-2. Designed for high-performance machining of very hard and hard-to-machine materials. It is a cylindrical-face cutter with a smooth cylindrical shank DIN 6536 HA. A special grade of sintered carbide with TiAIN coating is used for its production. Such a milling cutter design guarantees increased cutting efficiency, as well as the highest possible machining precision. In addition, carbide milling cutters are characterized by increased resistance to very difficult cutting conditions, including, in particular, high temperatures generated during machining. Carbide milling cutters fi 16 are also very hard and durable, as well as resistant to abrasion. Their advantages also include good chemical resistance, good adhesion to the substrate and a low coefficient of friction. This increases the comfort of work and extends the life of the tools. The cutters are recommended for conventional machine tools and machine tools with higher rigidity.
Read more LessReviews
No customer reviews for the moment.
