Description
Technical data for carbide corner radius end mill Ø12 R 0.5 mm
| Technical data | |
|---|---|
| Working diameter d1 | 12 mm |
| Shank diameter d2 | 12 mm |
| Flute length l2 | 30 mm |
| Overall length l1 | 75 mm |
| Corner radius R | 0.5 mm |
| Number of cutting edges | 4 |

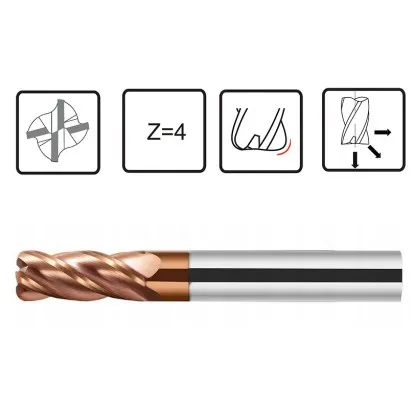

Solid carbide (VHM) corner radius end mill Ø12 R0.5 mm
Carbide corner radius end mill Ø10 R 0.5 mm is a precision end mill made of solid cemented carbide, designed for machining structural steels, alloy steels, and cast iron with a hardness of up to 45 HRC. With a corner radius of 0.5 mm, the end mill provides longer edge life and a reduced risk of chipping, resulting in consistent machining quality even under demanding conditions.
The end mill features four cutting edges, ensuring even force distribution and a smooth milling process. The corner radius geometry combines high productivity with precise surface finishing. The end mill performs well in both roughing and semi-finishing, especially in CNC processes requiring repeatability and dimensional stability.
Benefits:
- Long cutting edge life – the 0.5 mm corner radius reduces wear and extends end mill life.
- Stable machining in hard materials – effective machining of steel and cast iron up to 45 HRC.
- Versatility of applications – suitable for both roughing and semi-finishing milling.
- Precise corner radius geometry – ensures high surface quality and reduces vibration during machining.
This carbide corner radius end mill Ø10 mm R 0.5 mm is an ideal choice for manufacturing facilities seeking an end mill that combines productivity, long tool life, and stable machining parameters.
Cutting data for carbide corner radius end mill Ø12 R-0.5 mm 45 HRC
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] |
|---|---|---|
| PSteel | 60-75 | 0.060-0.086 |
| MStainless steel | 50 | 0.025 |
| KCast iron | 87-100 | 0.035-0.055 |
| NAluminum | 167 | 0.050 |
| HHardened Materials | 40 | 0.027 |
