Description
Technical data for carbide corner radius end mill Ø10 R 1 mm
| Technical data | |
|---|---|
| Working diameter d1 | 10 mm |
| Shank diameter d2 | 10 mm |
| Flute length l2 | 25 mm |
| Overall length l1 | 75 mm |
| Corner radius R | 1 mm |
| Number of cutting edges | 4 |

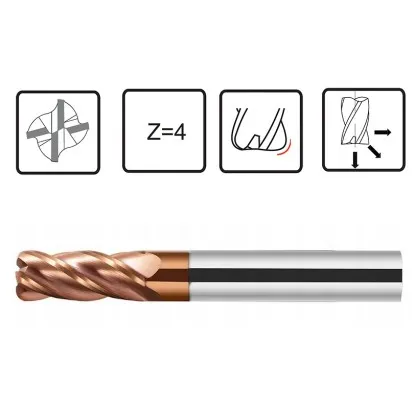

Solid carbide (VHM) corner radius end mill Ø10 R1 mm
Carbide end mill 10 R-1 Z-4 VHM 45 HRC is a solid cemented carbide (VHM) corner radius end mill designed for machining structural and alloy steels, austenitic stainless steels, and cast iron with a hardness of up to 45 HRC. The corner radius R 1 mm stabilizes the edge, reduces stress concentration, and improves resistance to chipping in continuous and lightly interrupted cutting.
The corner radius geometry combined with the Z-4 configuration provides four effective cutting edges, even force distribution, and a smooth milling process. The end mill performs well in roughing and semi-finishing operations, especially on CNC machining centers where repeatability and burr-free surface quality are essential.
Benefits
- Longer cutting edge life – the radius R 1 mm reduces corner wear and allows cutting parameters to be maintained for longer.
- Stable Z-4 operation – four cutting edges reduce end mill vibration and improve feed per tooth while maintaining finish quality.
- Versatility across materials – effective machining of steel, austenitic stainless steels, and cast iron up to 45 HRC.
- Improved surface quality – the corner radius geometry reduces the risk of steps on pocket floors and makes it easier to maintain tolerances.
The carbide end mill Ø10 in this solid carbide (VHM) version with radius R 1 and four cutting edges is a suitable choice for machining pockets, slots, and guide edges when a predictable process and repeatable surface roughness are required.
Cutting data for carbide corner radius end mill Ø10 R1 mm 45 HRC
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] |
|---|---|---|
| PSteel | 60-75 | 0.060-0.086 |
| MStainless steel | 50 | 0.025 |
| KCast iron | 87-100 | 0.035-0.055 |
| NAluminum | 167 | 0.050 |
| HHardened Materials | 40 | 0.027 |
