Carbide end mill 12 R-1 Z-4 VHM 45 HRC - Torus
search
  • Carbide end mill 12 R-1 Z-4 VHM 45 HRC - Torus
  • Carbide end mill 12 R-1 Z-4 VHM 45 HRC - Torus - nr. 1

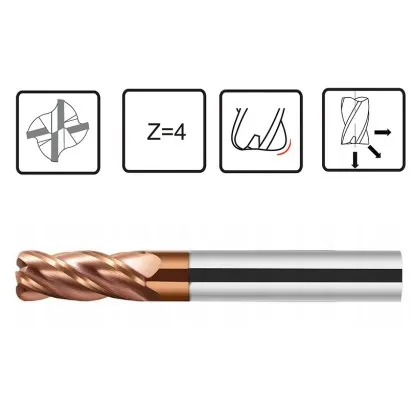

Carbide end mill 12 R-1 Z-4 VHM 45 HRC

Horn Horn
15009
€27.51 tax inc.

Net price: €22.37

Out of stock
Out of stock

Call and order: (44) 755-04-05

Description

Technical data of carbide cutter fi 12 R 1 mm Torus cutter

Technical data
Working diameter d1 12 mm
Shank diameter d2 12 mm
Length of working part l2 30 mm
Overall length l1 75 mm
Corner radius R 1 mm
Number of blades 4
Frez torusowy rysunek

Torus cutter fi 12 R1 mm Toroidal VHM

Torus cutter fi 12 R-1 Z-4 VHM 45 HRC is a solid carbide (VHM) cutter for machining structural and alloy steels, austenitic stainless steels and cast iron with hardness up to 45 HRC. The R 1 mm corner radius strengthens the cutting edge, dissipates stresses and reduces chipping, which promotes stable operation in continuous cutting and light interruptions.

The fi 12 diameter and torus geometry facilitate profiling and contour guiding with a 1 mm radial pass. The Z-4 system, or four effective blades, evenly distributes loads and stabilizes the milling process. The cutter works well in roughing and semi-finishing operations on CNC centers when process predictability and controlled surface roughness are required. The Torus Cutter fi 12 R-1 Z-4 VHM 45 HRC provides dimensional repeatability in pockets, grooves and leading edges.

Benefits

  • R 1 mm radius - strengthens the corner and reduces the risk of microcracks, which maintains stable cutting parameters for a longer period of time.
  • Z-4 configuration - four blades reduce cutter vibration and allow higher feed per tooth while maintaining finish quality.
  • Application up to 45 HRC - machining carbon, low-alloy and austenitic stainless steels, as well as gray and ductile iron.
  • Torus geometry fi 12 - smooth pocket bottoms and smaller steps in the radius-wall transition zone make it easier to maintain tolerances.

The fi 12 torus cutter with an R 1 radius and Z-4 layout in VHM 45 HRC is the right choice for profiling, edge finishing and stable contouring in steel and cast iron.

Cutting parameters of carbide cutter fi 12 R-1.0 mm torus cutter 45 HRC

ISO symbolMaterialCutting speed Vc [m/min]Feed per blade fz [mm]
P Steel 60-75 0,060-0,086
M Stainless steel 50 0,025
K Cast iron 87-100 0,035-0,055
N Aluminum 167 0,050
H Hardened materials 40 0,027

Read more
