Description

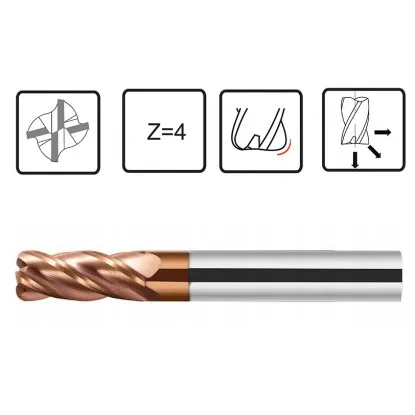

Technical data of carbide cutter fi 10 R 0.5 mm Torus cutter
| Technical data | |
|---|---|
| Working diameter d1 | 10 mm |
| Shank diameter d2 | 10 mm |
| Length of working part l2 | 25 mm |
| Overall length l1 | 75 mm |
| Number of blades | 4 |
Forked cutter fi 10 R0.5 mm Toroidal VHM
Carbide end mill 10 R 0.5 mm torus cutter is a precision solid carbide cutter designed for machining structural steels, alloy steels and cast iron with hardness up to 45 HRC. With a corner radius of 0.5 mm, the cutter provides greater edge life and reduced risk of chipping, resulting in stable machining quality even when working in demanding conditions.
The cutter is equipped with four cutting edges, which allows for an even distribution of forces and a smooth milling process. The use of torus geometry allows combining high performance with precise surface finish. The cutter works well in both roughing and semi-finishing operations, especially in CNC processes where repeatability and dimensional stability are required.
Benefits:
- High edge life - 0.5 mm corner radius reduces wear and extends the life of the cutter.
- Stable operation in hard materials - efficient machining of steel and cast iron up to 45 HRC hardness.
- Versatility of applications - possibility of both roughing and semi-finishing milling.
- Precision torus geometry - ensures high surface quality and reduces vibration during operation.
This carbide torus milling cutter fi 10 mm R 0.5 mm is an ideal choice for manufacturing plants looking for a milling cutter that combines performance, long life and stable machining parameters.
Cutting parameters of carbide cutter fi 10 R-0.5 mm torus cutter 45 HRC
| ISO Symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60-75 | 0,060-0,086 |
| M | Stainless steel | 50 | 0,025 |
| K | Cast iron | 87-100 | 0,035-0,055 |
| N | Aluminum | 167 | 0,050 |
| H | Hardened materials | 40 | 0,027 |
