Description
Technical data for the M18x1.5 INOX cobalt die
| Technical data | |
|---|---|
| Thread size D1 | M18x1.5 |
| Thread Pitch P | 1.5 mm |
| Outside Diameter D2 | 45 mm |
| Thickness H1 | 14 mm |
| Number of Chip Holes | 6 |
| Required Shaft Diameter | 17.85 mm |

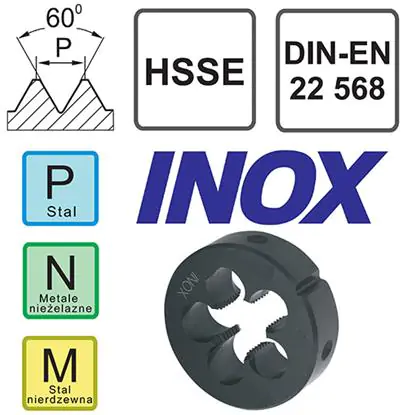

Die M18X1.5 HSSE Inox DIN 22568 – specialized stainless steel threading
Producing external threads with a diameter of 18 mm and a fine pitch of 1.5 mm in stainless steels and difficult-to-machine corrosion-resistant materials. Metric die M18X1.5 HSSE Inox made of cobalt-alloyed high-speed steel (HSS) hardened to 67 HRC in accordance with DIN 22568 (Deutsches Institut für Normung – German Institute for Standardization), ensures effective machining of INOX materials. The tool is intended for machine shops, toolrooms, and facilities manufacturing components from stainless steel and special alloys.
Key benefits of the M18X1.5 HSSE threading die
- Cobalt-alloyed HSSE steel with a hardness of 67 HRC – increased resistance to high temperatures and wear when threading stainless steel
- Fine thread with a 1.5 mm pitch – provides higher joint strength and better sealing than the standard M18X2.5 thread
- Tolerance class 6g according to DIN 22568 – general-purpose clearance fit for joints in INOX steels
- INOX material range – efficient thread cutting in stainless steels with tensile strengths up to 1000 MPa and in corrosion-resistant alloys
- Round design – a one-piece body ensures uniform cutting forces in difficult-to-machine materials
Professionals in the food, chemical, and medical industries use the M18X1.5 HSSE Inox round die in the manufacture of process equipment, corrosion-resistant hydraulic components, and structures exposed to aggressive environments. The tool is used in the pharmaceutical industry, sanitary equipment, and wherever stainless steel joints are required. Invest in a specialized tool for INOX materials.
Frequently asked questions
Tolerance 6g specifies a general-purpose precision class with assembly clearance, allowing nuts to be screwed on without difficulty. It is the most popular standard in industrial applications requiring joints in INOX steels.
The tool is intended for threading stainless steels with a maximum tensile strength of 1000 MPa and corrosion-resistant alloys. Do not use it in materials with hardness exceeding 40 HRC.
Chamfer the edge of the component at 45°, clamp the rod securely, and position the die perpendicular to the axis. Cut the thread with lighter pressure than for ordinary steel, regularly reversing the tool half a turn and using a specialized lubricant for INOX.
