Description
Technical data for the M8x1 INOX cobalt die
| Technical data | |
|---|---|
| Thread size D1 | M8x1 |
| Thread Pitch P | 1 mm |
| Outside Diameter D2 | 25 mm |
| Thickness H1 | 9 mm |
| Number of Chip Holes | 4 |
| Required Shaft Diameter | 7.88 mm |

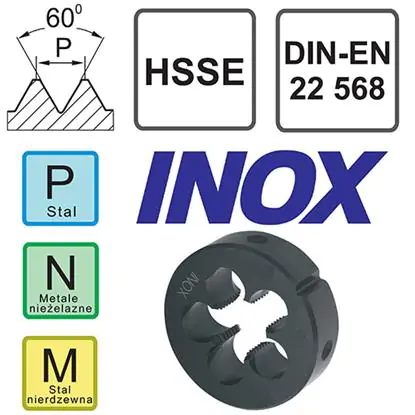

Die M8X1 HSSE Inox DIN 22568 – precision threading of stainless steel at small diameters
A specialized tool for cutting external threads with a diameter of 8 mm and a fine pitch of 1 mm in stainless and difficult-to-machine steels. Metric die M8X1 HSSE Inox made of cobalt-alloyed high-speed steel hardened to 67 HRC in accordance with DIN 22568 (Deutsches Institut für Normung – German Institute for Standardization), provides effective machining of INOX materials with small cross sections. Designed for toolrooms, machine shops, and facilities producing precision components from stainless steel and corrosion-resistant alloys.
Main features of the M8X1 HSSE threading die
- Cobalt-alloyed HSSE steel with a hardness of 67 HRC – increased resistance to high temperatures and wear when threading stainless steel with small cross sections
- Fine thread with a 1 mm pitch – provides higher joint strength and better sealing than the standard M8X1.25 thread
- Tolerance class 6g according to DIN 22568 – general-purpose clearance fit for joints in INOX steels
- INOX material range – efficient thread cutting in stainless steels with tensile strengths up to 1000 MPa and in corrosion-resistant alloys
- Solid construction – solid body construction ensures symmetrical threading in difficult-to-machine materials at small diameters
Specialists in the food, chemical, and medical industries use the M8X1 HSSE Inox round die in the production of process equipment, corrosion-resistant measuring components, and structures exposed to aggressive environments. The tool is used in the pharmaceutical industry, sanitary equipment, and precision mechanics requiring stainless steel connections. Invest in a specialized tool for INOX materials with small cross sections.
Frequently asked questions
Class 6g represents general-purpose accuracy with a clearance fit that allows easy nut installation and removal. It is the most common standard in industrial applications requiring INOX steel connections.
Chamfer the end of the rod at 45°, secure the workpiece firmly to eliminate vibration, and guide the die perpendicularly. Apply lighter pressure than with ordinary steel, regularly reverse half a turn, and lubricate generously with a specialized INOX lubricant containing EP additives.
This tool is designed for threading stainless steels with a maximum tensile strength of 1000 MPa and corrosion-resistant alloys. The maximum hardness of the workpiece material should not exceed 40 HRC.
