Description
Technical data of insert for metric external threads 1 mm
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric External Right / Internal Left Thread |
| Thread pitch range P | 1 mm |
| Example application | M6, M8x1, M10x1, M12x1, M14x1, M24x1 |
| Thread profile | solid ISO |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |
Insert for M6 and fine threads 1 mm pitch full ISO profile

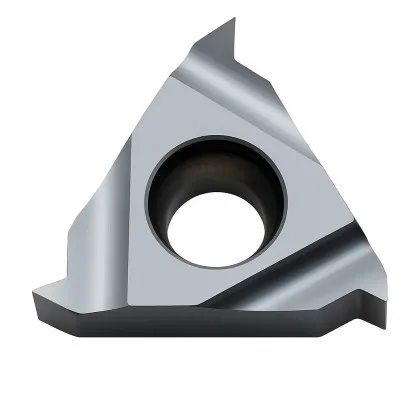

The 16 ER 1 ISO MTA thread insert is a turning tool with full ISO profile for making metric threads with a pitch of 1 mm. The insert for external right-hand metric thread s with a dedicated pitch cuts a 60-degree thread profile and aligns the thread diameter, providing complete machining without the need for additional tip finishing.
Key benefits of the 16 ER 1 mm ISO MTA insert
- Full ISO profile for 1 mm pitch - supports M6 threads as well as fine threads M8x1, M10x1, M30x1 and all with 1 mm pitch
- Complete machining in one pass - dedicated insert cuts profile 60 degrees and aligns outside diameter eliminating additional finishing operations
- Series 16 for a wide range - stable design allows threading from small M6 diameters to large M30x1 fine threads
- Interchangeable use - insert works as outside legal and inside left when mounted in the appropriate Series 16 lathe holder
- Conforms to ISO metric standard - full profile guarantees dimensional repeatability and compatibility with 6H tolerance nuts
The insert of choice in the production of mechanical components requiring M6 threads and fine-twist connections with a pitch of 1 mm. Ideal for workshops making a variety of diameters with a single pitch in series production requiring quality. Prepare the nominal diameter of the shaft before starting threading on the lathe.
Cutting parameters for right-hand outer insert 16 ER pitch 1 mm Horn
| ISO symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm [TPI zwoje] | 1,0-[24] |
|---|---|
| Number of passes | 4-9 |
Frequently asked questions
1. Which lathe toolholders are compatible with the 16 ER 1 ISO insert?
This tool is mounted in right-hand external toolholders having a 16 ER standard socket. In addition, the same insert can be mounted in internal left-hand boring bars with a 16 IR socket, so one tool supports both external shaft and bore threads with an identical pitch of 1 mm.
2. For which metric threads to use the 1 ISO insert?
The tool is dedicated to the M6 basic thread with a pitch of 1 mm, as well as to threads with a reduced pitch such as M8x1, M10x1, M30x1 and any other metric thread design that maintains this pitch parameter. The complete profile according to the ISO standard guarantees full thread shaping with finished coil tips.
3. What is the insertion depth for a 1 mm thread?
H1 - Height of the thread outline given in [mm] || P - pitch of the thread given in [mm]
H1 [mm] = 0.6134 × P
For a thread with a pitch of 1 mm: H1 = 0.6134 × 1 = 0.61 mm
