Technical data of insert for metric internal threads 22 IR N60
| Technical data | |
|---|---|
| Side length L | 22 mm |
| Thread profile | 60 degrees |
| Insert type | Metric thread Inner right / Outer left |
| Thread pitch range P | 3.5 to 5.0 mm |
| Application examples | M30, M36, M39, M42, M48, M52 |
| Thread profile | iSO incomplete |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |

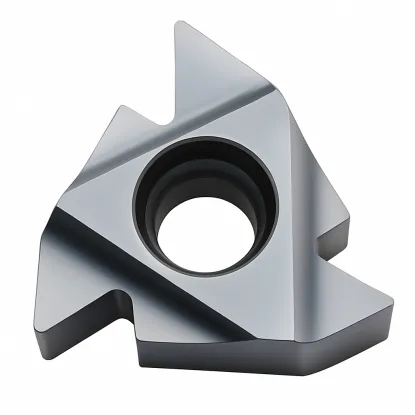

Insert for metric threads 22 IR N60 HTA - precision threading in the range of 3.5-5 mm
The 22 IR N60 HTAmetric internal thread insert is an advanced turning tool with an incomplete profile, designed for making ISO threads with a pitch of P=3.5-5 mm. The 60-degree tip angle ensures compliance with the metric standard, and the ability to be used interchangeably as an external left-hand insert makes this tool extremely functional in the daily operation of the workshop.
Key benefits of the 22 IR N60 HTA insert
- Universal stroke range of 3.5-5 mm - supports M30, M33, M36, M39, M42, M45, M48, M52 with one tool
- HTA grade - high durability when machining steel, cast steel and cast iron
- Interchangeable function - inner right insert also works as outer left insert
- Incomplete profile N60 - flexibility in making different metric threads without changing the tool
- Size 22 mm - guarantees stable clamping and precision for larger diameters
This insert for 3.5 to 5 mm metric threads is appreciated by specialists making threads on the lathe in a wide range of diameters. It's ideal for shops that require one universal tool for a variety of ISO thread pitches. Increase the efficiency of your workshop - choose an insert that combines precision with versatility of use.
Cutting parameters for the internal insert right 22 IR pitch 3,5-5 mm
| ISO symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm [TPI zwoje] | 3.5 | 5.0 |
|---|---|---|
| Number of passes | 8-17 | 10-20 |
Frequently asked questions
1. What metric threads can be made with the 22 IR N60 HTA insert?
The insert supports metric threads with a pitch of 3.5-5 mm according to the ISO standard. You can make M30, M33, M36, M39, M42, M45, M48 and M52 threads with corresponding pitches. The N60 incomplete profile with a 60-degree angle allows you to thread the entire pitch range without changing the tool on the lathe.
2. Can the insert be used interchangeably for external threads?
Yes, the 22 IR N60 HTA insert is interchangeable and can work as an external left (EL) for metric threads. It requires a 22-mm toolholder and proper clamping with full seat fit. The HTA grade provides durability for machining steel, cast steel and cast iron in both internal and external threading.
3. What is the height of the turned thread outline for this insert?
H1 - Height of thread outline given in mm || P - pitch of thread given in mm
H1 = 0.54127 * P
