Description
Technical data of carbide cutter fi 8
- working diameter d1 - 8 mm,
- shank diameter d2 - 8 mm,
- length of the working part l2 - 20 mm,
- total length l1 - 60 mm,
- number of blades - Z - 2.
Cutting parameters of carbide cutter fi 8 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,034÷0,049 |
| M | Stainless steels | 50 | 0,011 |
| K | Cast iron | 87÷100 | 0,035 |
| N | Aluminum | 150 | 0,029 |
| H | Hardened materials | 40 | 0,019 |

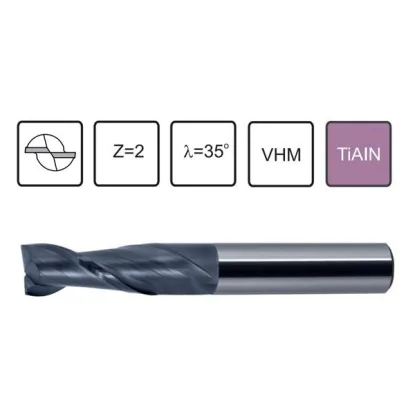

Pitchfork milling cutter fi 8 VHM
VHM millingcutter fi 8 mm D 8 Z-2 cylindrical face full carbide, with TiAIN coating, fine-grain universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 8 VHM, widia, arbor, with cylindrical shank, size D-8, Z-2, recommended for high-performance and high-precision machining. It is end mill, face cylindrical, solid carbide VHM 45 HRC. The cutter is suitable for line machining, profiling, copying, making grooves and channels. The milling cutters in the offer of our store are dedicated to both individual customers and large production plants. Its advantage is increased resistance to heavy cutting conditions and improved resistance to potential mechanical damage. Carbide milling cutters fi 8 from our offer are characterized by very good cutting properties, the ability to perform machining under high temperatures, as well as resistance to abrasion. Their advantage is also good adhesion to the substrate and low coefficient of friction. Cutters are recommended for various types of machine tools, both machines and higher rigidity, as well as conventional machine tools.
