Description
Technical data for carbide corner radius end mill Ø8 R 1 mm
| Technical data | |
|---|---|
| Working diameter d1 | 8 mm |
| Shank diameter d2 | 8 mm |
| Flute length l2 | 20 mm |
| Overall length l1 | 60 mm |
| Corner radius R | 1 mm |
| Number of cutting edges | 4 |

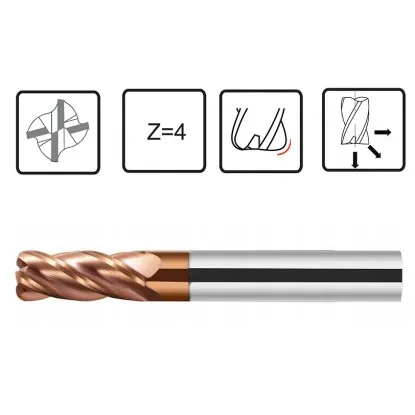

Solid carbide (VHM) corner radius end mill Ø8 R 1 mm
Carbide end mill 8 R-1 Z-4 VHM 45 HRC is a corner radius end mill made of solid cemented carbide (VHM), designed for machining structural and alloy steels, austenitic stainless steels, and cast iron with a hardness of up to 45 HRC. The corner radius R 1 mm strengthens the cutting edge, lowers stress concentration, and reduces chipping in continuous and lightly interrupted cutting.
The diameter Ø8 combined with the corner radius geometry facilitates contour machining with a 1 mm radius transition and produces smooth pocket floors. The Z-4 configuration, with four effective cutting edges, distributes loads evenly and stabilizes the milling process. The end mill performs well in roughing and semi-finishing operations on CNC machining centers, ensuring predictable chip shape and controlled surface roughness.
Benefits
- Radius R 1 mm – strengthens the corner and reduces the risk of microcracking, maintaining stable cutting parameters for longer.
- Z-4 configuration – four cutting edges reduce end mill vibration and allow higher feed per tooth without compromising finish quality.
- Applications up to 45 HRC – effective machining of carbon steels, low-alloy steels, and austenitic stainless steels, as well as gray and ductile cast iron.
- Corner radius geometry Ø8 – makes it easier to maintain tolerances in narrow pockets and reduces steps in the radius-to-wall transition area.
The solid carbide (VHM) end mill Ø8 R-1 Z-4 45 HRC is recommended for profiling, contour machining, and finishing guide edges where process repeatability and consistent quality are essential.
Cutting data for carbide corner radius end mill Ø8 R1 mm 45 HRC
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] |
|---|---|---|
| PSteel | 60-75 | 0.060-0.086 |
| MStainless steel | 50 | 0.025 |
| KCast iron | 87-100 | 0.035-0.055 |
| NAluminum | 167 | 0.050 |
| HHardened Materials | 40 | 0.027 |
