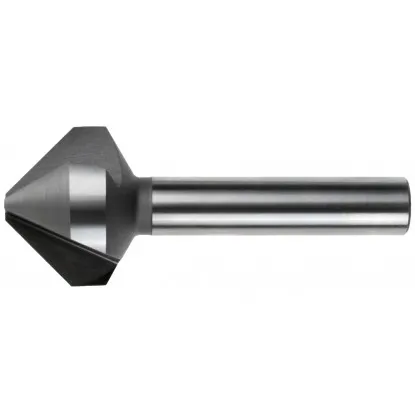

Tapered countersink 10.4/90 DIN 335 C HSS

Producer: Poland

reference: 13261

€8.09 tax inc.

Net price: €6.58

Instant Shipping

In stock > 10 pcs.

Instant Shipping

Call and order: (44) 755-04-05

Description

Technical data of conical countersink fi 10.4 mm 90 degrees

Technical data
Blade angle	90 degrees
Maximum diameter of the hole D	fi 10,4 mm
Minimum bore diameter D1	2,5 mm
Diameter of the shank part d	6 mm
overall length L	50 mm
Length of working part l	8 mm
Number of blades Z	3
Material	HSS high-speed steel

Cutting parameters for countersink fi 10.4 mm 90 degrees

ISO symbol	Material	Vc [m/min]	Feed fz [mm/ostrze]	n [obr/min]	Total feed rate f [mm/min]
P	Steel	18	0,06	573	103
M	Stainless steel	10	0,03	318	143
K	Cast iron	8	0,04	255	191
N	Aluminum	50	0,12	1592	573

Tapered countersink fi 10,4 mm 90 degrees DIN 335 C HSS is a precision machining tool for countersinking holes for tapered screw heads and chamfering edges in a variety of metal materials. Made of high-quality HSS high speed steel, it is characterized by good wear resistance and stable operation at standard cutting parameters.

The design of the tool, based on three working blades, ensures uniform cutting and reduced vibration, which translates into a high quality finish and increased tool life. The fi 10.4 mm 90-degree conical countersink is perfect for manual work and CNC machine tools.

The tool can be used for many materials, including as a taper countersink for metal - unalloyed steel, aluminum, brass or bronze. With proper cooling, it is also applicable as a fi 10.4 mm 90-degree taper countersink for stainless steel, providing clean, burr-free countersinks. The high-quality cutting surface facilitates chip evacuation and improves work efficiency.

Three working blades - provides stability, smooth cutting and better surface quality.
HSS steel - guarantees durability and resistance in standard metalworking.
High-quality cutting surface - allows for aesthetic and clean edges.
Versatility - excellent as a taper countersink for metal in various industrial applications.
Use for stainless steel - possible with properly selected cooling conditions.

Conical countersink fi 10,4 mm 90 degrees is a proven solution for companies looking for an efficient and precise tool in daily metalworking.
