Description
| Technical data | |
|---|---|
| Thread Diameter d1 | M5 |
| Thread Pitch P | 0.8 mm |
| Overall Length l1 | 50 mm |
| Flute Length l2 | 14 mm |
| Shank Diameter d2 | 6 mm |
| Square Drive Width Across Flats a | 4.9 mm |
| Tap Drill Hole | 4.2 mm |

Division of work in the 1–2–3 set
The M5 x0.8 thread is formed in the wall of a hole with a diameter of 4.2 mm. The thread groove extends 0.4 mm into the wall. A single tap would have to cut the entire groove at once – by hand, this creates high resistance and a risk of breakage. The set divides this work into three layers.

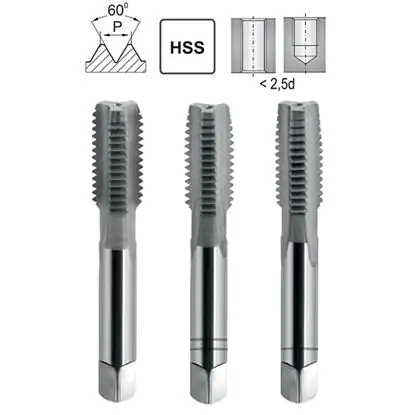

The drawing shows the entire set in operation. All three taps have the same shank and the same length. They differ in chamfer length: No. 1 has a taper spanning 7–10 threads, while No. 3 spans only 1–2 threads. The detail views at the hole wall show how the thread groove deepens after each tap.
| Tap | Chamfer | Material removed | How it works in the hole |
|---|---|---|---|
| No. 1 – roughing tap | long, 7–10 threads | approx. 60% | enters smoothly and establishes thread alignment |
| No. 2 – intermediate | medium, 3–5 threads | approx. 30% | screws into the previously cut threads and starts cutting only deeper in the hole |
| No. 3 – finishing tap | short, 1–2 threads | approx. 10% + sizing | turns easily and produces the full 6H profile |
The chamfer is the tapered end of the tap. No. 1 has the longest chamfer and No. 3 the shortest – the difference is immediately visible when they are placed side by side. No. 1 and No. 2 have shallower thread profiles; only No. 3 has the full profile. The number can also be identified on the shank: No. 1 has one ring, No. 2 has two, and No. 3 has none. Keep the set together and always start with the roughing tap.
Hand tapping step by step
Drill bit 4.2 mm
Removes approx. 60%
Removes approx. 30%
Removes approx. 10%
Tolerance 6H
Turning sequence: half a turn clockwise, a quarter turn counterclockwise | Between taps: remove chips from the hole
Start with the hole. The drill diameter is easy to calculate: thread diameter 5 mm minus pitch 0.8 mm gives 4.2 mm. An undersized hole is a common cause of a tap twisting off in the workpiece.
The set taps both types of holes. In a through hole, the thread extends through the full material thickness. In a blind hole, cut the thread to 7.5 mm, or 1.5 times the thread diameter (1.5 x 5 mm, shown as 1.5D in the drawing). Drill the hole deeper than the thread. The clearance below the thread accommodates chips and the finishing tap chamfer.
Fit the roughing tap in the tap wrench and position it perpendicular to the surface. Check the angle from two sides, for example with a square. Turn half a turn clockwise, then a quarter turn counterclockwise. Reversing breaks the chip into short pieces – a slight crunch is normal. The first threads determine whether the thread will be straight.
Unscrew the roughing tap and remove chips from the hole. Screw the intermediate tap by hand into the previously cut threads – it should engage them naturally. It turns easily at first and starts cutting only deeper in the hole. The finishing tap enters with almost no resistance and cuts the final portion of the profile only at the end. When it screws smoothly all the way in, the thread is ready – check it with an M5 screw.
The M5 hand tap set is a professional set of three tools for cutting internal threads with a diameter of 5 mm and a pitch of 0.8 mm. M5 HSS hand taps are widely used in industrial electronics, household appliance manufacturing, aluminum profiles, and mounting components, where M5 screws are standard fasteners.
The 3-piece M5 hand tap set is suitable for electronics manufacturers, aluminum profile assembly companies, and equipment repair shops. To drill the tap hole for an M5 thread, use a drill bit with a diameter of 4.2 mm. When working with aluminum, use kerosene or paraffin oil as a lubricant.
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
For an M5 thread with a pitch of 0.8 mm, use a 4.2 mm drill bit. Calculation: diameter minus pitch (5 - 0.8 = 4.2 mm).
The M5 thread predominates in industrial electronics, aluminum profiles, equipment enclosures, and mounting components. It is a popular size in automation.
Kerosene or paraffin oil is best for aluminum. These prevent chips from jamming and material from adhering to the tap's cutting edges.
