Description

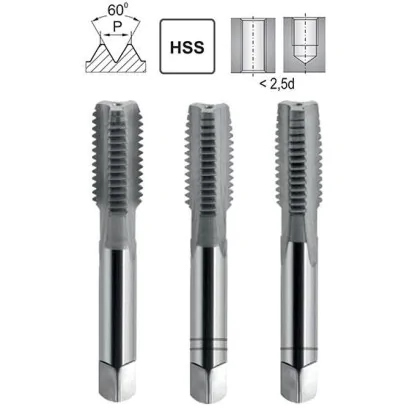

Material HSS
Thread size M22
Number of pieces3 pcs
Tolerance 6H ISO2
Technical data for the M22 hand tap
| Technical data | |
|---|---|
| Thread Diameter d1 | M22 |
| Thread Pitch P | 2.5 mm |
| Overall Length l1 | 118 mm |
| Flute Length l2 | 38 mm |
| Shank Diameter d2 | 16 mm |
| Square Drive Width Across Flats a | 12.5 mm |
| Tap Drill Hole | 19.5 mm |
Roughing, intermediate, and finishing taps – how much material each removes
Division of work in the 1–2–3 set
The M22 x2.5 thread is formed in the wall of a hole with a diameter of 19.5 mm. The thread groove extends 1.25 mm into the wall. A single tap would have to cut the entire groove at once – by hand, this creates high resistance and a risk of breakage. The set divides this work into three layers.
The drawing shows the entire set in operation. All three taps have the same shank and the same length. They differ in chamfer length: No. 1 has a taper spanning 7–10 threads, while No. 3 spans only 1–2 threads. The detail views at the hole wall show how the thread groove deepens after each tap.
| Tap | Chamfer | Material removed | How it works in the hole |
|---|---|---|---|
| No. 1 – roughing tap | long, 7–10 threads | approx. 60% | enters smoothly and establishes thread alignment |
| No. 2 – intermediate | medium, 3–5 threads | approx. 30% | screws into the previously cut threads and starts cutting only deeper in the hole |
| No. 3 – finishing tap | short, 1–2 threads | approx. 10% + sizing | turns easily and produces the full 6H profile |
How to identify the tap numbers in the set
The chamfer is the tapered end of the tap. No. 1 has the longest chamfer and No. 3 the shortest – the difference is immediately visible when they are placed side by side. No. 1 and No. 2 have shallower thread profiles; only No. 3 has the full profile. The number can also be identified on the shank: No. 1 has one ring, No. 2 has two, and No. 3 has none. Keep the set together and always start with the roughing tap.
How to tap an M22 hole – sequence 1, 2, 3
Hand tapping step by step
Thread M22 x2.5 in five steps
ØDrilling
Drill bit 19.5 mm
1Roughing tap
Removes approx. 60%
2Intermediate
Removes approx. 30%
3Finishing tap
Removes approx. 10%
✓Finished thread
Tolerance 6H
Turning sequence: half a turn clockwise, a quarter turn counterclockwise | Between taps: remove chips from the hole
Start with the hole. The drill diameter is easy to calculate: thread diameter 22 mm minus pitch 2.5 mm gives 19.5 mm. An undersized hole is a common cause of a tap twisting off in the workpiece.
Through hole or blind hole – how deep to drill
The set taps both types of holes. In a through hole, the thread extends through the full material thickness. In a blind hole, cut the thread to 33 mm, or 1.5 times the thread diameter (1.5 x 22 mm, shown as 1.5D in the drawing). Drill the hole deeper than the thread. The clearance below the thread accommodates chips and the finishing tap chamfer.
No. 1 – the roughing tap establishes thread alignment
Fit the roughing tap in the tap wrench and position it perpendicular to the surface. Check the angle from two sides, for example with a square. Turn half a turn clockwise, then a quarter turn counterclockwise. Reversing breaks the chip into short pieces – a slight crunch is normal. The first threads determine whether the thread will be straight.
No. 2 and No. 3 – deepening and full profile
Unscrew the roughing tap and remove chips from the hole. Screw the intermediate tap by hand into the previously cut threads – it should engage them naturally. It turns easily at first and starts cutting only deeper in the hole. The finishing tap enters with almost no resistance and cuts the final portion of the profile only at the end. When it screws smoothly all the way in, the thread is ready – check it with an M22 screw.
M22 HSS ISO 529 hand tap – 3-piece set complying with an international standard
The M22 ISO 529 hand tap set is a professional set of three tools for cutting internal threads with a diameter of 22 mm and a pitch of 2.5 mm. M22 HSS hand taps complying with ISO 529 are used in machinery manufacturing, the power industry, and steel construction, where compliance with international tool dimensions is required.
Key advantages of the M22 ISO 529 tap set
- 3-piece set (roughing, intermediate, and finishing taps) – progressive cutting distributes the load when cutting a large-diameter thread
- ISO 529 standard – international dimensional standard ensuring compatibility with tools from around the world
- Diameter 22 mm with a 2.5 mm pitch – for connections carrying heavy loads in machines and structures
- HSS high-speed steel – enables machining of structural steels and cast iron with strengths up to 800 MPa
- Tolerance 6H – precise fit with tolerance class 6g metric screws
The M22 ISO 529 hand tap set is suitable for export-oriented plants, international companies, and service centers for imported machinery. Use a drill bit with a diameter of 19.5 mm to drill the hole for an M22 thread. ISO 529 is equivalent to DIN 352 in terms of functional dimensions.
Tolerance 6H — metric thread tolerance classes
| Class | Accuracy | Application | Status |
|---|---|---|---|
| 4H / 4g | High | Precision connections, hydraulics | — |
| 6H / 6g | Standard | Machine building, general-purpose | SELECTED |
| 7H / 8g | Low | Large clearance, easy assembly | — |
6H = internal thread (nut, hole) | 6g = external thread (screw)
Frequently asked questions
ISO 529 is the international equivalent of the German DIN 352 standard. The functional dimensions are identical; only the designations and documentation differ.
Use a 19.5 mm drill bit for an M22 thread with a pitch of 2.5 mm. Calculation: diameter minus pitch (22 - 2.5 = 19.5 mm).
The ISO standard is preferred for product exports and international cooperation. In workshop practice, the two standards are interchangeable.
