Description

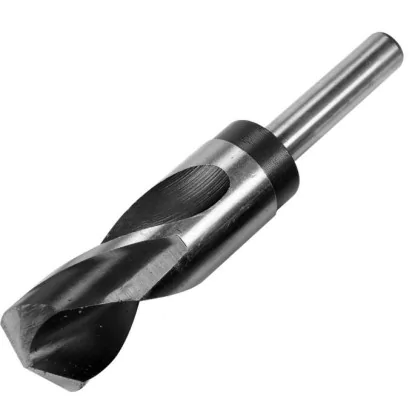

Technical data for the drill bit for metal, Ø30 mm, with reduced shank
| Technical data | |
|---|---|
| Working diameter of drill d | Ø30 mm |
| Overall length l1 | 152 mm |
| Flute length l2 | 65 mm |
| Shank diameter - 1.2" | 12.7 mm |
- 1/2 inch reduced shank – mounting without adapters
- Drilling in steels up to 35 HRC
- High-quality HSS steel
- IT11 tolerance (±130 µm)
- Ground surface – low roughness
Cutting data for the Ø30 mm HSS NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 14-25 | 0.25 | 149 | 37 |
| KCast iron | 10-18 | 0.25 | 106 | 27 |
May be useful
Cutting parameters calculator
Ø30 mm HSS reduced-shank metal drill bit – an efficient tool for industrial production
High-quality a Ø30 mm drill bit made of high-speed steel (HSS) with a reduced shank is a specialized solution for the most demanding production processes. The reduced 12.7 mm (half-inch) diameter shank allows immediate use in standard drill holders. The tool is intended for heavy industry, steel fabrication plants, and professional machinery service shops.
Key features of the Varel Ø30 mm reduced-shank drill bit
- Shank reduced to a half-inch diameter – allows quick mounting in stationary and magnetic drills without additional adapters
- IT11 dimensional standard compliant with ISO 286-1 – drilled hole accuracy of ±130 µm meets the requirements of industrial assembly applications
- High-precision grinding – provides stable guidance during drilling and reduces cutting forces by 25 percent
- Effective in materials up to 35 HRC – intended for S235 and S355 structural steels, gray cast iron, and nonferrous metals
- Certified Varel quality – European manufacturing standards for cutting tools
The reduced-shank design effectively eliminates limitations caused by diameter differences between the drill bit and standard workshop equipment. The polished finish efficiently dissipates heat from the machining area, maintaining high productivity during extended operation in continuous production and emergency repairs.
Frequently asked questions
This HSS drill bit effectively drills S235 and S355 structural steels with a maximum hardness of 35 HRC, as well as gray cast iron, aluminum, and brass. We advise against use in hardened steels exceeding 35 HRC and in austenitic stainless steel grades.
For large-diameter drill bits, coolant is strongly recommended and practically essential for optimal results. Proper lubrication and cooling can extend tool life by up to 60 percent and significantly improve hole dimensional accuracy and surface finish.
When machining S235 steel, the suggested speed range is 160-230 rpm; for S355 steel, it is 115-175 rpm. Higher rotational speeds cause excessive tool heating and a rapid loss of cutting performance.
