Description
Technical data Ø14.8 metal drill bit
| Technical data | |
|---|---|
| Working diameter of drill d | Ø14.8 mm |
| Overall length l1 | 169 mm |
| Flute length l2 | 114 mm |
| Shank diameter d1 | 13 mm |
- Drill bit manufactured according to DIN-338
- Suitable for drilling materials up to 35 HRC
- 118° point angle suited to drilling steel and cast steel
- Made from the finest grade of high-speed steel (HSS)
- Produces a hole with an h8 tolerance
- Low hole surface roughness
Cutting data for the Ø14.8 mm HSS NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 14-25 | 0.16 | 302 | 48 |
| KCast iron | 10-18 | 0.16 | 216 | 35 |
May be useful
Cutting parameters calculator

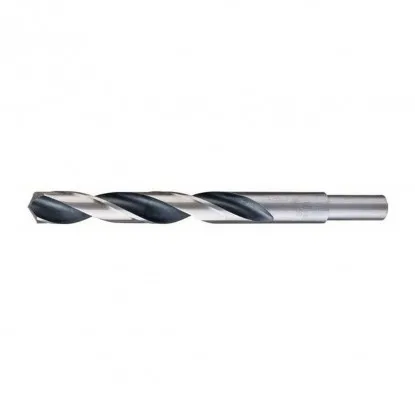

14.8 mm reduced-shank HSS DIN 338 metal drill bit – precision standardized tool
High-quality a Ø14.8 mm HSS drill bit compliant with DIN 338 with a reduced shank combines quality standards with practical functionality. The 13 mm diameter shank allows immediate use in standard drill chucks. The DIN 338 standard guarantees precisely defined tool design parameters.
Features of the 14.8 mm Varel drill bit according to the DIN 338 standard
- Compliance with DIN 338 – a standardized 118° point angle and precise helix geometry
- Shank reduced to 13 mm – allows quick mounting in stationary and magnetic drills without adapters
- Universal 118° geometry – a parameter specified in DIN 338, proven in various machining applications
- High-quality grinding – improves cutting edge accuracy and stability during drilling
- HSS material according to DIN 338 specifications – high-speed steel (HSS) with properties that guarantee a long service life
- Varel brand product – tools compliant with industrial standards
The DIN 338 standard ensures compatibility and predictable tool performance under various operating conditions. The reduced 13 mm shank design increases versatility when using standard workshop equipment, eliminating the need for additional adapters.
Frequently asked questions
The 118° point angle specified in DIN 338 is optimal for most structural steels. It provides a balance between cutting efficiency, chip evacuation, and cutting edge life.
We recommend water-based coolant emulsions or metalworking oils depending on the workpiece material. Proper lubrication is essential to maintaining drill bit sharpness and high hole quality.
For lower-strength structural steels, we suggest a range of 295-400 rpm; for harder grades, 250-330 rpm. These parameters follow machining guidelines for HSS tools of the given diameter.
