Description

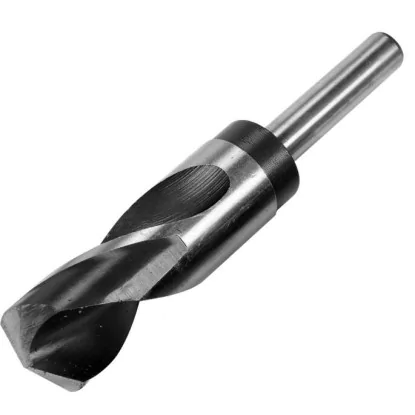

Technical data for the drill bit for metal, Ø28 mm, with reduced shank
| Technical data | |
|---|---|
| Working diameter of drill d | Ø28 mm |
| Overall length l1 | 152 mm |
| Flute length l2 | 65 mm |
| Shank diameter - 1.2" | 12.7 mm |
- 1/2 inch reduced shank – mounting without adapters
- Drilling in steels up to 35 HRC
- High-quality HSS steel
- IT11 tolerance (±130 µm)
- Ground surface – low roughness
Cutting data for the Ø28 mm HSS NWKa drill bit
| Material | Cutting speed Vc [m/min] | Feed per revolution f [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| PSteel | 14-25 | 0.25 | 159 | 40 |
| KCast iron | 10-18 | 0.25 | 114 | 29 |
May be useful
Cutting parameters calculator
Ø28 mm reduced-shank HSS metal drill bit – a precision tool for demanding applications
Advanced Ø28 mm drill bit with a reduced shank made of high-speed steel (HSS) is a solution for the most demanding machining processes. Reducing the shank to a diameter of 12.7 mm (half an inch) allows direct use in standard holders without additional accessories. The tool is developed for the machinery industry, industrial repairs, and specialized machining facilities.
Technical advantages of the Varel Ø28 mm drill bit
- Reduced shank with a half-inch diameter – ensures immediate compatibility with industrial drilling machines and magnetic drills without adapter sleeves
- IT11 accuracy specified in ISO 286-1 – holes have a dimensional tolerance of ±130 µm, suitable for industrial applications
- Ground finish on the cutting section – reduces drilling resistance forces by 25 percent and improves the quality of machined surfaces
- Application range up to 35 HRC – efficient machining of S235 and S355 structural steels, cast iron, and nonferrous metals
- Varel-branded product – a renowned tool brand for European industry
The reduced shank is an innovative solution to the problem of clamping large-diameter tools in machines with standard chucks. The smooth working surface achieved by polishing effectively dissipates heat generated during cutting, ensuring stable operation in high-volume production.
Frequently asked questions
The Ø28 mm HSS drill bit is intended for machining S235 and S355 structural steels with a hardness not exceeding 35 HRC, as well as gray cast iron, aluminum, and brass. We do not recommend use in heat-treated steels exceeding 35 HRC or in high-chromium stainless steel grades.
Dry drilling is theoretically possible, but we strongly advise against it. Using a coolant emulsion or cutting oil increases drill life by up to 60 percent and significantly improves hole dimensional accuracy and surface finish.
For S235 steel, we recommend setting the speed to 170-240 rpm, while for S355 steel the range is 125-185 rpm. Exceeding these parameters causes excessive temperature rise and accelerated loss of the tool's cutting performance.
Product accessories
Countersink countersink 35/90 DIN 335 C HSS
Reference: 0000009536 In stock > 10 items
€34.74
€42.73 brutto
