Description
Technical data of carbide cutter fi 20
- working diameter d1 - fi 20 mm,
- shank diameter d2 - 20 mm,
- length of working part l2 - 45 mm,
- total length l1 - 100 mm,
- number of blades - Z - 2
Cutting parameters of carbide cutter fi 20 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] |
|---|---|---|---|
| P | Steel | 60÷70 | 0,091÷0,130 |
| M | Stainless steels | 50 | 0,016 |
| K | Cast iron | 87÷100 | 0,065÷0,078 |
| N | Aluminum | 150 | 0,100 |
| H | Hardened materials | 40 | 0,053 |

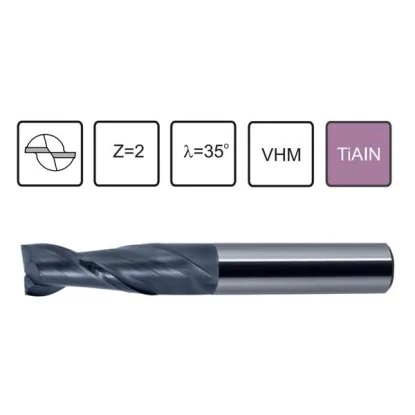

Pitchfork milling cutter fi 20 VHM
VHM millingcutter fi 20 mmD-20 Z-2 cylindrical face full carbide, with TiAIN coating, fine-grained universal carbide, with smooth cylindrical shank DIN6535 HA.
Carbide 20 VHM, widia millingcutter, designed for high-performance machining of hard and hard-to-machine materials. It is a solid carbide face milling cutter, TiAIN-coated, with a smooth DIN6535 HA cylindrical shank. The cutter is suitable for making channels and grooves, profiling, copying and performing line machining. It is recommended to realize professional high-performance machining, using modern machine tools with higher rigidity (with low radial runout) and various types of conventional machine tools. Carbide milling cutters fi 20 in our offer are characterized by increased hardness and durability. They are resistant to abrasion under the influence of high temperature, are characterized by resistance to abrasive wear and also chemical resistance. They are recommended for machining alloyed steel, stainless steel, heat-resistant and acid-resistant steel, as well as cast steel and cast iron.
