Description
Technical data of carbide cutter fi 12
| Technical data | |
|---|---|
| Working diameter d1 | 12 mm |
| Shank diameter d2 | 12 mm |
| Length of working part l2 | 30 mm |
| Overall length l1 | 75 mm |
| Number of blades | 2 |
Cutting parameters of carbide cutter fi 12 mm 45 HRC
| ISO symbol | Material | Cutting speed Vc [m/min] | Feed per blade fz [mm] | Revolutions n [obr/min] | Total feed [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 60-70 | 0,059-0,084 | 1592 | 188 |
| M | Stainless steel | 50 | 0,012 | 1327 | 32 |
| K | Cast iron | 87-100 | 0,047-0,061 | 2309 | 217 |
| N | Aluminum | 150 | 0,047 | 3981 | 374 |
| H | Hardened materials | 40 | 0,031 | 1062 | 66 |

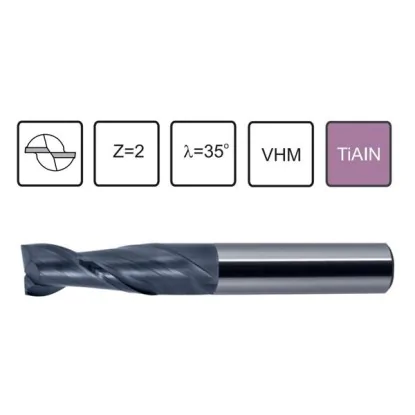

Pitchfork milling cutter fi 12 VHM
VHM cutterfi 12 VHM solid carbide end mill, with TiAIN coating, fine-grain universal carbide, with smooth DIN6535 HA cylindrical shank.
High quality carbide 12 fork D-12 Z-2, VHM 45 HRC. It is a solid carbide end mill, with TiAIN coating, with smooth cylindrical shank DIN6535 HA. VHMwyproduced burrs offered in our store are made of fine-grained tungsten carbide with increased wear resistance and increased impact strength, which increases the possibility of machining hard and hard-to-machine materials. The carbide fi 12 burrs in question are suitable for machining alloy steels, metals, stainless steel, acid-resistant steel, heat-resistant steel, cast steel, cast iron and surface-hardened materials. They are recommended for various types of machine tools, including both conventional and modern machines with higher rigidity (with low radial runout).
