Description
Technical data for carbide corner radius end mill Ø6 R 1 mm
| Technical data | |
|---|---|
| Working diameter d1 | 6 mm |
| Shank diameter d2 | 6 mm |
| Flute length l2 | 15 mm |
| Overall length l1 | 50 mm |
| Corner radius R | 1 mm |
| Number of cutting edges | 4 |

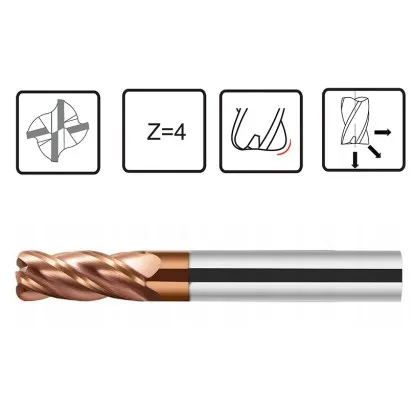

Solid carbide (VHM) corner radius end mill Ø6 R1 mm
Carbide end mill 6 R-1 Z-4 VHM 45 HRC is a solid cemented carbide (VHM) corner radius end mill designed for machining structural and alloy steels, austenitic stainless steels, and cast iron with a hardness of up to 45 HRC. The corner radius R 1 mm strengthens the edge, reduces stress concentration, and improves resistance to chipping during continuous and lightly interrupted cutting.
The diameter Ø6 and corner radius geometry facilitate precise contour machining with a 1 mm radius transition. The Z-4 configuration, with four effective cutting edges, promotes even force distribution and a stable milling process. The end mill performs well in roughing and semi-finishing operations on CNC machining centers where dimensional repeatability, predictable chip shape, and controlled surface roughness are required.
Benefits
- Longer cutting edge life – the radius R 1 mm reduces corner wear and microcracking, resulting in less frequent end mill replacement.
- Stable Z-4 operation – four cutting edges reduce vibration and allow increased feed per tooth while maintaining finish quality.
- Applications up to 45 HRC – effective machining of carbon steels, low-alloy steels, austenitic stainless steels, and gray and ductile cast iron.
- Corner radius geometry – smooth pocket floors, smaller steps in radius-to-wall transition areas, and better tolerance control.
The carbide end mill Ø6 with radius R 1 and Z-4 configuration in solid carbide (VHM), 45 HRC, is a suitable choice for pockets, slots, and profiling when process stability and repeatable surface quality are essential.
Cutting data for carbide corner radius end mill Ø6 R1 mm 45 HRC
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] |
|---|---|---|
| PSteel | 60-75 | 0.060-0.086 |
| MStainless steel | 50 | 0.025 |
| KCast iron | 87-100 | 0.035-0.055 |
| NAluminum | 167 | 0.050 |
| HHardened Materials | 40 | 0.027 |
