Description
Technical data for carbide corner radius end mill Ø6 R 0.5 mm
| Technical data | |
|---|---|
| Working diameter d1 | 6 mm |
| Shank diameter d2 | 6 mm |
| Flute length l2 | 15 mm |
| Overall length l1 | 50 mm |
| Number of cutting edges | 4 |

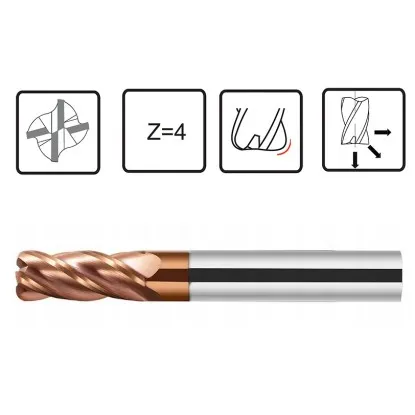

Solid carbide (VHM) corner radius end mill Ø6 R0.5 mm
Carbide end mill 6 R-0.5 Z-4 VHM 45 HRC is a solid cemented carbide (VHM) corner radius end mill designed for machining structural and alloy steels, austenitic stainless steels, and cast iron with a hardness of up to 45 HRC. The corner radius R-0.5 strengthens the cutting edge, reduces stress concentration, and minimizes the risk of chipping in continuous or lightly interrupted cutting.
The Z-4 configuration provides four effective cutting edges, promoting even force distribution and a stable milling process. The corner radius geometry facilitates machining pockets, slots, and guide edges, as well as maintaining tolerances on pocket floors. The end mill performs well in roughing and semi-finishing operations on CNC machining centers where dimensional repeatability and predictable chip shape are important.
Benefits
- Radius R-0.5 – increases the corner's resistance to microcracking and allows cutting parameters to be maintained without a sudden drop in quality.
- Z-4 configuration – four cutting edges reduce end mill vibration and allow higher feed per tooth while maintaining consistent surface roughness.
- Applications up to 45 HRC – effective machining of carbon steels, low-alloy steels, and austenitic stainless steels, as well as gray and ductile cast iron.
- Corner radius geometry – reduces steps on pocket floors and improves tool life in radius-to-wall transition areas.
The carbide end mill Ø6 with radius R-0.5 and Z-4 configuration in the solid carbide (VHM) 45 HRC version is a suitable choice for profiling, contour machining, and precision surface finishing in steels and cast iron while maintaining process stability.
Cutting data for carbide corner radius end mill Ø6 R0.5 mm 45 HRC
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] |
|---|---|---|
| PSteel | 60-75 | 0.060-0.086 |
| MStainless steel | 50 | 0.025 |
| KCast iron | 87-100 | 0.035-0.055 |
| NAluminum | 167 | 0.050 |
| HHardened Materials | 40 | 0.027 |
