Thread cutter M4 P-0.7 mm Fi 4.8 mm 60 HRC
search
  • Thread cutter M4 P-0.7 mm Fi 4.8 mm 60 HRC
  • Thread cutter M4 P-0.7 mm Fi 4.8 mm 60 HRC - nr. 1
  • Thread cutter M4 P-0.7 mm Fi 4.8 mm 60 HRC - nr. 4
  • Thread cutter M4 P-0.7 mm Fi 4.8 mm 60 HRC - nr. 5
Horn

Thread milling cutter M4 P-0.7 mm Fi 3.15 mm 60 HRC

Horn Horn
15149
Thread pitch: 0.7 mm8 sizes of this cutter
€25.89 tax inc.

Net price: €21.05

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Technical data for the M4 thread milling cutter - pitch 0.7 mm

Technical data
Thread pitch P-0.7 mm
Working diameter d1 3.15 mm
Shank diameter d2 4 mm
Working length l2 12 mm
Number of flutes Z 3
Overall length L 50 mm
Thread milling cutter drawing

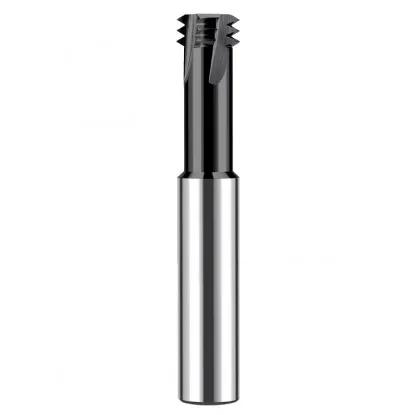

Thread milling cutter M4 P-0.7 mm Fi 3.15 mm 60 HRC

The 0.7 mm thread milling cutter is a high-precision solid carbide (VHM) tool designed for milling metric fine threads with a pitch of 0.7 mm and a profile angle of 60°. Featuring a TiAlN coating, it provides increased wear resistance and the ability to operate at higher temperatures, extending its service life in intensive machining processes.

The cutting diameter of 6 mm ensures excellent precision when machining small threads, while the optimized cutting edge geometry produces a clean, accurate profile. M4 thread milling cutter offering high thread quality even in demanding materials.

  • Precision machining of M4 P-0.7 mm fine threads – ideal for components requiring highly accurate, tight connections.
  • TiAlN coating – increases wear and heat resistance, allowing operation at higher cutting parameters.
  • Solid carbide (VHM) – provides long service life and resistance to microcracking during machining.
  • Small cutting diameter – Ø3.15 mm ensures precise guidance and minimizes the risk of errors in small threads.
  • Universal application – for structural steels, stainless steels, cast iron, and nonferrous metal alloys.

Thread milling cutter 0.7 mm for internal and external threads is a reliable tool for production facilities and CNC shops where accuracy, durability, and process repeatability matter.

Frequently asked questions

The cutter is designed for machining structural steels, stainless steels, cast iron, and difficult-to-machine materials. With a core hardness of 60 HRC and a TiAlN coating, it maintains long service life even under intensive use.

No, the tool can mill any metric thread with a pitch of 0.7 mm and a profile angle of 60°, both internal and external – both coarse and fine threads – depending on the hole diameter and provided that appropriate operating parameters are maintained. This allows flexible use in producing various thread types.
