Description
Technical data for the M10 thread milling cutter - pitch 1.5 mm
| Technical data | |
|---|---|
| Thread pitch | P-1.5 mm |
| Working diameter d1 | 8 mm |
| Shank diameter d2 | 8 mm |
| Working length l2 | 21 mm |
| Number of flutes Z | 3 |
| Overall length L | 60 mm |

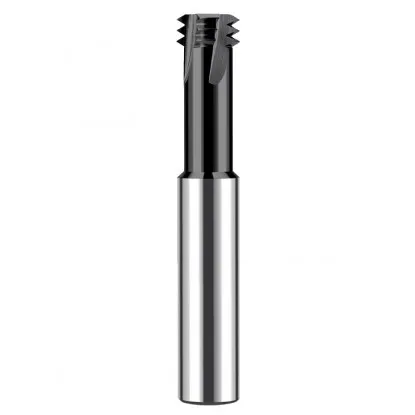

Thread milling cutter M10 P-1.5 mm Fi 8 mm 60 HRC is a precision tool made of solid cemented carbide (VHM), designed for milling metric threads with a pitch of 1.5 mm and a profile angle of 60°. The TiAlN coating significantly increases resistance to wear, oxidation, and high temperatures, extending tool life and maintaining consistent machining quality even under demanding industrial conditions.
The cutting diameter of 8 mm provides high rigidity and cutting process stability, minimizing the risk of vibration and improving the thread surface finish. M10 thread milling cutter is suitable for machining both through holes and blind holes on CNC machines and modern conventional milling machines.
- M10 metric thread – pitch 1.5 mm, profile angle 60°.
- TiAlN coating – high resistance to wear and operation at high temperatures.
- Solid carbide (VHM) material – solid cemented carbide with a hardness of 60 HRC.
- Diameter of 8 mm – optimum rigidity and machining precision.
- Wide range of applications – structural steel, stainless steel, cast iron, difficult-to-machine materials.
Thread milling cutter 1.5 mm is a durable tool that provides high thread quality and repeatability in industrial and workshop applications.
Frequently asked questions
The cutter is designed for machining structural steels, stainless steels, cast iron, and difficult-to-machine materials. With a core hardness of 60 HRC and a TiAlN coating, it maintains long service life even under intensive use.
Yes, the tool can mill any metric thread with a pitch of 1.5 mm and a profile angle of 60° – both coarse and fine threads – depending on the hole diameter and provided that appropriate operating parameters are maintained. This allows flexible use in producing various thread types.
Yes, the tool geometry allows safe thread milling in both through holes and blind holes. It is only necessary to select the appropriate depth for entry into and exit from the material.
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |
