Description
Technical data for the M6 thread milling cutter - pitch 1 mm
| Technical data | |
|---|---|
| Thread pitch | P-1 mm |
| Working diameter d1 | 4.8 mm |
| Shank diameter d2 | 6 mm |
| Working length l2 | 12 mm |
| Number of flutes Z | 3 |
| Overall length L1 | 50 mm |

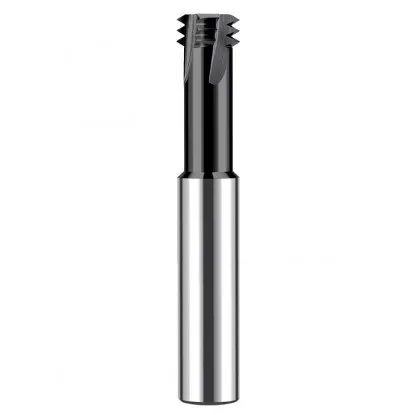

Thread milling cutter M6 P-1 mm Fi 6 mm 60 HRC is a precision tool made of solid cemented carbide (VHM), designed for milling metric threads with a pitch of 1 mm and a profile angle of 60°. The TiAlN coating provides increased resistance to wear, oxidation, and high temperatures, resulting in longer service life and consistent machining quality.
The cutting diameter of 6 mm ensures high precision and rigidity during operation. M6 thread milling cutter performs excellently in through holes and blind holes. It can be used in both CNC machining centers and modern conventional milling machines.
- M6 metric thread – pitch 1 mm, profile angle 60°.
- TiAlN coating – high resistance to wear and operation at elevated temperatures.
- Solid carbide (VHM) material – solid cemented carbide with a hardness of 60 HRC.
- Diameter of 6 mm – stable, precise thread machining.
- Wide range of applications – structural steel, stainless steel, cast iron, and difficult-to-machine materials.
Thread milling cutter 1 mm is a robust, reliable tool for industrial and workshop applications, ensuring repeatability and high thread quality.
Frequently asked questions
The cutter is designed for machining structural steels, stainless steels, cast iron, and difficult-to-machine materials. With a core hardness of 60 HRC and a TiAlN coating, it maintains long service life even under intensive use.
Yes, the tool can mill any metric thread with a pitch of 1 mm and a profile angle of 60° – both coarse and fine threads – depending on the hole diameter and provided that appropriate operating parameters are maintained. This allows flexible use in producing various thread types.
Yes, the tool geometry allows safe thread milling in both through holes and blind holes. It is only necessary to select the appropriate depth for entry into and exit from the material.
