Description
Technical data for the M24 M27 thread milling cutter - pitch 3 mm
| Technical data | |
|---|---|
| Thread pitch | P-3 mm |
| Working diameter d1 | 15.9 mm |
| Shank diameter d2 | 16 mm |
| Working length l2 | 50 mm |
| Number of flutes Z | 5 |
| Overall length L | 90 mm |

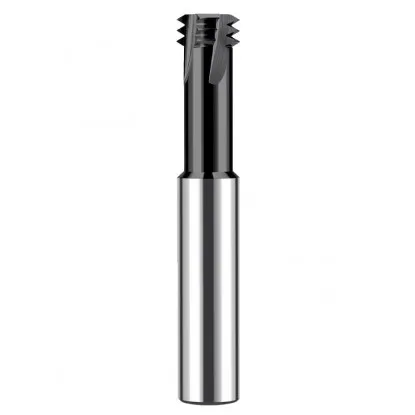

Thread milling cutter M24, M27 P-3 mm Ø15.9 mm 60 HRC is a high-performance tool made of solid cemented carbide (VHM), designed for machining metric threads with a pitch of 3 mm and a profile angle of 60°. The TiAlN coating provides excellent wear resistance, high thermal stability, and longer tool life even under demanding production conditions.
With a cutting diameter of 15.9 mm, the cutter ensures high rigidity and stability during milling. M24 M27 thread milling cutter enables precise machining of large-diameter threads, providing a clean profile and a high-quality surface finish. It performs well in both series and single-part production.
- Precision milling of M24 and M27 P-3 mm threads – enables an ideal metric thread profile with a large cross section.
- TiAlN coating – increases wear resistance and allows operation at high cutting speeds.
- Solid carbide (VHM) – a hardness of 60 HRC provides long service life and dimensional stability when machining steel and cast iron.
- Large diameter Ø15.9 mm – provides high rigidity and reduces vibration when milling large threads.
- Universal application – for machining structural steels, stainless steels, cast iron, and nonferrous metal alloys.
Thread milling cutter 3 mm is a professional tool designed for production facilities and CNC shops that require the highest precision, durability, and repeatability in thread machining.
Frequently asked questions
The cutter is designed for machining structural steels, stainless steels, cast iron, and difficult-to-machine materials. With a core hardness of 60 HRC and a TiAlN coating, it maintains long service life even under intensive use.
Yes, the tool can mill any metric thread with a pitch of 3 mm and a profile angle of 60° – both coarse and fine threads – depending on the hole diameter and provided that appropriate operating parameters are maintained. This allows flexible use in producing various thread types.
Yes, the tool geometry allows safe thread milling in both through holes and blind holes. It is only necessary to select the appropriate depth for entry into and exit from the material.
