Description
Technical data of thread milling cutter M5 - stroke 0.8 mm
| Technical data | |
|---|---|
| Thread pitch | P-0,8 mm |
| Working diameter d1 | 4,8 mm |
| Shank diameter d2 | 6 mm |
| Working length l2 | 20 mm |
| Number of blade grooves Z | 3 |
| Overall length L | 50 mm |

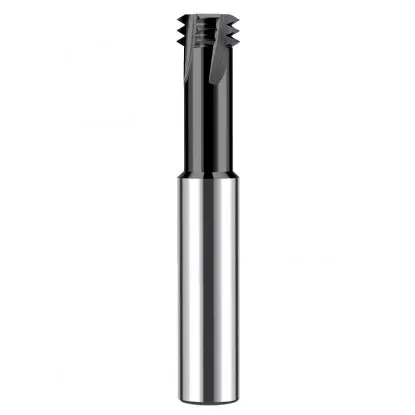

External thread milling cutter with pitch 0.8 mm metric M5
TheM5 P-0.8 mm Fi 6 mm 60 HRC thread milling cutter is a precision tool made of monolithic tungsten carbide (VHM), designed for machining metric threads with a pitch of 0.8 mm and an outline angle of 60°. The TiAlN coating provides increased resistance to abrasion, oxidation and heat, resulting in longer tool life and stable machining quality.
The working diameter of 6 mm guarantees high precision and rigidity during operation. The M5 threading cutter is ideal for through-holes and blind holes. It can be used both in CNC machining centers and in modern conventional milling machines.
- M5 metric thread - pitch 0.8 mm, outline angle 60°.
- TiAlN coating - high resistance to abrasion and work at elevated temperatures.
- VHM material - monolithic carbide with a hardness of 60 HRC.
- Diameter 6 mm - precise and stable thread machining.
- Wide application - structural steel, stainless steel, cast iron and hard-to-machine materials.
The0.8 mm thread cutter is a reliable tool for precise and repeatable threading in industrial and workshop applications.
Frequently asked questions
1. What materials is this cutter suitable for?
The cutter is designed for machining structural steels, stainless steels, cast iron and hard-to-machine materials. With a core hardness of 60 HRC and TiAlN coating, it maintains high durability even under heavy use.
2. Can this cutter be used for threads other than M5?
Yes, the tool makes it possible to mill any metric thread with a pitch of 0.8 mm and an outline angle of 60 degrees - both regular and fine threads - depending on the diameter of the hole and with the appropriate operating parameters. This means flexible use in the production of different types of threads.
3. Is the cutter suitable for blind holes?
Yes, the geometry of the tool makes it possible to safely mill threads in both through-holes and blind holes. It is only important to select the correct depth of entry and exit of the material.
