Description
Technical data for the M18 M22 thread milling cutter - pitch 2.0 mm
| Technical data | |
|---|---|
| Thread pitch | P-2.5 mm |
| Working diameter d1 | 15.9 mm |
| Shank diameter d2 | 16 mm |
| Working length l2 | 50 mm |
| Number of flutes Z | 5 |
| Overall length L | 90 mm |

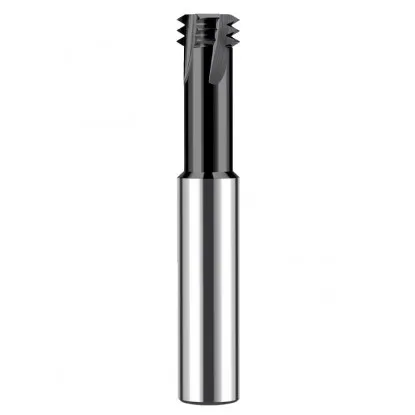

Thread milling cutter M18 M20 M22 P-2.5 mm Ø15.9 mm 60 HRC is an efficient tool made of solid cemented carbide (VHM), designed for precision milling of metric threads with a pitch of 2.5 mm and a profile angle of 60°. Thanks to its TiAlN coating, the cutter offers high wear resistance, stability at high temperatures, and the ability to operate at high cutting speeds.
The substantial cutting diameter of 15.9 mm provides exceptional tool rigidity and accuracy when producing threads in the M18–M22 range. M18 M22 thread milling cutter performs well when machining components with large cross sections, offering a clean thread profile and long service life while maintaining a high-quality surface finish.
- Precision milling of M18 M20 M22 P-2.5 mm threads – ensures profile accuracy and dimensional repeatability of metric threads.
- TiAlN coating – provides excellent heat resistance, reduces friction, and extends tool life.
- Solid carbide (VHM) – a hardness of 60 HRC ensures long service life even when machining hard steels and cast irons.
- High rigidity and stability – a diameter of Ø15.9 mm enables highly precise machining without vibration or form deviations.
- Universal application – for structural steels, stainless steels, cast iron, and nonferrous metal alloys.
Thread milling cutter 2.5 mm is a reliable tool for professional production facilities that require stability, high productivity, and consistent machining quality.
Frequently asked questions
The cutter is designed for machining structural steels, stainless steels, cast iron, and difficult-to-machine materials. With a core hardness of 60 HRC and a TiAlN coating, it maintains long service life even under intensive use.
Yes, the tool can mill any metric thread with a pitch of 2.5 mm and a profile angle of 60° – both coarse and fine threads – depending on the hole diameter and provided that appropriate operating parameters are maintained. This allows flexible use in producing various thread types.
Yes, the tool geometry allows safe thread milling in both through holes and blind holes. It is only necessary to select the appropriate depth for entry into and exit from the material.
