Description

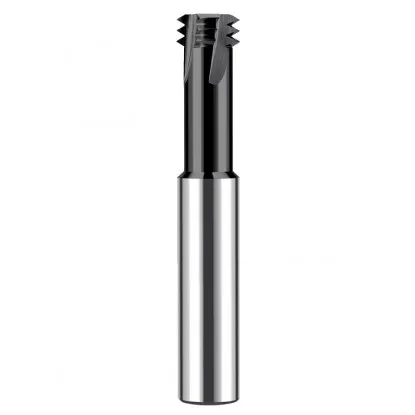

Technical data of thread milling cutter M14 M16 - stroke 2.0 mm
| Technical data | |
|---|---|
| Thread pitch | P-2.0 mm |
| Working diameter d1 | 12 mm |
| Shank diameter d2 | 12 mm |
| Working length l2 | 40 mm |
| Number of blade grooves Z | 4 |
| Overall length L | 75 mm |
Thread milling cutter with a pitch of 2 mm metric M14 M16
TheM14 M16 P-2 mm Fi 12 mm 60 HRC thread milling cutter is a precision tool made of monolithic VHM carbide, designed for milling metric threads with a pitch of 2 mm. The tool has been coated with TiAlN coating, which provides increased thermal and abrasion resistance, which allows machining at elevated parameters without the risk of rapid wear.
The cutter with a diameter of 12 mm is characterized by high rigidity and stability in the cutting process, which translates into greater durability and accuracy of the threads made. The M14 M16 threading cut ter is suitable for working in both through-holes and blind holes, providing a clean thread profile with minimal risk of edge damage.
- Precision machining of P-2 mm metric thread s - enables permanent bolted connections in M14 and M16 threads.
- TiAlN coating - increases oxidation and abrasion resistance, allowing operation at higher temperatures and feeds.
- Durable VHM monolithic carbide - guarantees long life and high performance when milling steel, stainless steel and cast iron.
- Stable tool geometry - fi 12 mm increases rigidity, which improves thread quality and reduces the risk of vibration.
- Universal application - for series and unit production, compatible with CNC machines and conventional milling machines.
The2 mm thread milling cutter is a solid solution for plants expecting high reliability and repeatability of the threading process while fully utilizing the machining potential of the machines.
Frequently asked questions
1.What materials is this cutter suitable for
The cutter is designed for machining structural steel, stainless steel, cast iron and hard-to-machine materials. Thanks to its core hardness of 60 HRC and TiAlN coating, it maintains high durability even under heavy use.
2. What threads can be obtained with this cutter, or only M14 and M16 ?
Yes, the tool makes it possible to mill any metric thread with a pitch of 1.75 mm and an outline angle of 60 degrees - both regular and fine threads - depending on the diameter of the hole and with the appropriate working parameters. This means flexible use in the production of different types of threads.
3.Is the milling cutter suitable for blind holes
Yes, the geometry of the tool allows safe milling of threads in both through and blind holes. It is only important to select the correct depth of entry and exit of the material.
