Description
Technical data of conical countersink fi 36 mm 120 degrees
| Technical data | |
|---|---|
| Blade angle | 120 degrees |
| Maximum bore diameter D | fi 36 mm |
| Minimum bore diameter D1 | 10 mm |
| Diameter of shank part d | 16 mm |
| overall length L | 77 mm |
| Length of working part l | 36 mm |
| Number of blades Z | 3 |
| Material | HSS high-speed steel |
Cutting parameters for countersink fi 36 mm 120 degrees
| ISO symbol | Material | Vc [m/min] | Feed fz [mm/ostrze] | n [obr/min] | Total feed rate f [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 18 | 0,06 | 159 | 29 |
| M | Stainless steel | 10 | 0,03 | 88 | 8 |
| K | Cast iron | 8 | 0,04 | 71 | 9 |
| N | Aluminum | 50 | 0,12 | 442 | 159 |

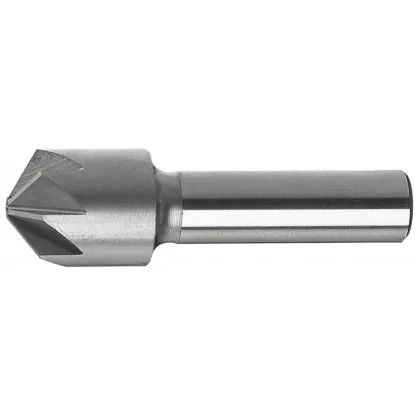

Tapered countersink fi 36 mm 120 degrees DIN 347 C HSS is a precision tool for professional machining of holes at an angle of one hundred and twenty degrees. It was designed for demanding technological processes, where stability of work and repeatability of results are important. With three working blades, the tool ensures even cutting and minimizes vibration.
The conical countersink fi 36 mm 120 degrees is made of HSS high-speed steel conforming to DIN 347 C. The hardness and wear resistance of the material mean that the tool retains its cutting properties even at high speeds and temperatures of up to six hundred degrees Celsius. This makes it ideal for intensive work in stainless steel, carbon steels and metal alloys.
The high-quality working surface minimizes material adhesion and facilitates chip evacuation, which significantly affects machining quality and tool life. The offered conical metal countersink also shows high resistance to mechanical damage, which reduces operating costs.
- Three blades that stabilize the tool - guarantee accuracy, smoothness and even cutting.
- HSS high-speed steel - increases tool life and resistance when machining difficult materials.
- Thermal resistance up to six hundred degrees - ensures consistent work quality even under extreme conditions.
- DIN 347 C - compliance with industrial requirements and guarantee of dimensional precision.
Tapered countersink fi 36 mm 120 degrees for stainless steel is a reliable solution for manufacturing plants that focus on quality, durability and high machining efficiency.
