Technical data of conical countersink fi 32 mm 120 degrees
| Technical data | |
|---|---|
| Blade angle | 120 degrees |
| Maximum bore diameter D | fi 32 mm |
| Minimum bore diameter D1 | 7 mm |
| Diameter of shank part d | 10 mm |
| overall length L | 65 mm |
| Length of working part l | 29 mm |
| Number of blades Z | 3 |
| Material | HSS high-speed steel |
Cutting parameters for countersink fi 32 mm 120 degrees
| ISO symbol | Material | Vc [m/min] | Feed fz [mm/ostrze] | n [obr/min] | Total feed rate f [mm/min] |
|---|---|---|---|---|---|
| P | Steel | 18 | 0,06 | 179 | 32 |
| M | Stainless steel | 10 | 0,03 | 100 | 9 |
| K | Cast iron | 8 | 0,04 | 80 | 10 |
| N | Aluminum | 50 | 0,12 | 498 | 179 |

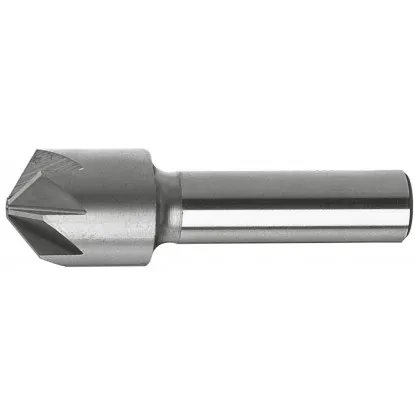

Tapered countersink fi 32 mm 120 degrees DIN 347 A HSS is a professional cutting tool designed for precision face machining around holes. Thanks to its design based on three ground blades, it provides exceptional stability during operation, which directly translates into higher quality countersinking and less frequent need for tool replacement.
Made of wear-resistant HSS high-speed steel, the 120-degree fi 32 mm conical countersink is perfect for machining stainless steel, carbon steel and hard-to-machine materials. The tool retains its sharpness and hardness even at temperatures reaching six hundred degrees Celsius, making it an ideal choice for high-speed cutting.
The high-quality work surface reduces workpiece material adhesion, aids chip evacuation and ensures repeatable machining even in large production runs.
- Three stabilizing blades - enables smooth and controlled machining without vibration.
- High durability of HSS steel - ensures long tool life in demanding conditions.
- Resistance to high temperatures - the tool maintains its cutting properties even during intensive cutting.
- Compliance with DIN 347 A - facilitates integration into industrial tooling systems.
The metal taper countersink guarantees repeatable results and minimizes production losses. For demanding users, the fi 32 mm 120-degree conical countersink for stainless steel provides a reliable solution for precise and economical machining.
