Description
Technical data of insert for metric internal threads 1,5 mm
| Technical data | |
|---|---|
| Side length L | 16 mm |
| Thread profile | 60 degrees |
| Insert type | Metric thread Internal right/external left |
| Thread pitch range P | 1.5 mm |
| Application examples | M10; M14x1,5; M16x1,5; M18x1,5; M20x1,5; M40x1,5 |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |
Insert for metric internal threads with a pitch of 1.5 mm

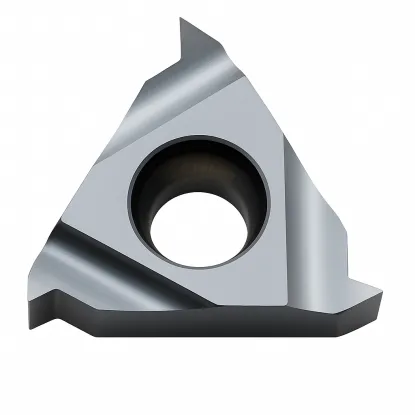

The 16 IR 1.5 ISO BMA thread insert is a versatile tool for internal threading. It is used for making right-hand metric internal thread s with a pitch of 1.5 mm on a lathe. Designed for ISO 68-1 compliant threads, it has a full 60-degree profile.
It allows to make M10 metric threads and M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5, M25x1.5, M26x1,5, M27x1.5, M28x1.5, M30x1.5, M32x1.5, M33x1.5, M34x1.5, M35x1.5, M36x1.5, M38x1.5, M39x1.5, M40x1.5, M42x1.5, M45x1.5, M48x1.5, M50x1.5. Interchangeably serves as a left outer plate when properly installed. BMA grade provides high wear resistance and long service life.
Key advantages of the 16 IR 1.5 mm ISO BMA insert
- Full 60-degree thread profile provides excellent machining quality and repeatability
- Extremely wide diameterrange from M10 to M50x1.5 with one insert
- Universal use for metric and fine threads with a pitch of 1.5 mm
- Interchangeable use as inner right and outer left insert
- BMA grade provides high hardness and stable performance under various conditions
The insert is appreciated by specialists for its versatility in internal threading on a wide range of diameters on the lathe. It will prove useful in the production of machine parts, mechanical constructions, industrial repairs and the manufacture of threaded parts. Ideal for mechanical workshops, batch production and technical services requiring flexibility. Bet on a proven solution for machining metric threads with a pitch of 1.5 mm. Order an insert that will improve internal threading in your workshop.
Cutting parameters for right-hand internal insert 16 IR pitch 1.5 mm
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm | 1,5 |
|---|---|
| Number of passes | 5-11 |
Frequently asked questions
1. What threads is the 16 IR 1.5 ISO BMA insert suitable for?
The insert is suitable for metric and fine internal threads with a pitch of 1.5 mm. It has a full profile with a 60-degree apex angle in accordance with ISO 68-1. You can use it to make M10 metric and fine-coil threads from M12x1.5 to M50x1.5. That's an exceptionally wide diameter range supported by a single insert with a pitch of 1.5 mm.
2. Does the insert also support external threads?
Yes, the 16 IR 1.5 ISO BMA insert can be used interchangeably. With the right turning knife, it works as an external left-hand insert. It requires the right toolholder and correct tool geometry setting. This makes it a versatile solution for different types of threading.
3. What is the height of the turned thread outline
H1 - Height of thread outline given in [mm] || P - pitch of thread given in [mm]
H1 [mm]=0.54127*P
For this pitch is: H1=0.54*1.5mm=0.81mm
