Internal metric threading insert 16 IR AG60 BMA

Technical data for the partial-profile insert for pitches of 0.5–3.0 mm

Technical data
Designation16 IR AG60 BMA
Typeinternal threading insert, right-hand
Profilepartial (incomplete), 60° angle
Pitch range0.5–3.0 mm
Threads per inch48–8
Corner radius0.05 mm
Insert size16: edge 16 mm, IC 9.525 mm
Cutting edges3
Tool holdersright-hand internal SIR holders, size 16, for bores from Ø16 mm, alternatively left-hand external SEL 16 holders
GradeBMA: submicron carbide, PVD TiAlN

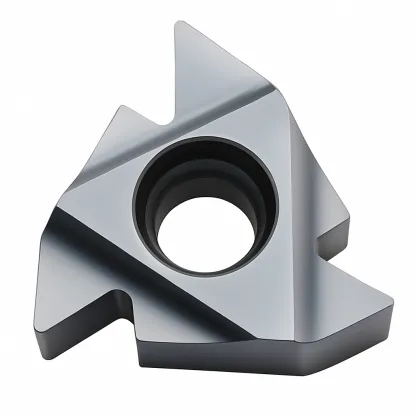

Fanar 16 IR AG60 BMA insert for internal metric threads, three corners with a 60° angle
Thread angle60°
Pitch range0.5–3.0 mm
Threads per inch48–8
Tool holdersSIR 16

Internal metric threading insert 16 IR AG60 BMA turns internal threads with a thread angle of 60° and pitches from 0.5 to 3.0 mm. A single insert can cut metric coarse threads from M20 to M27, metric fine threads within this pitch range, and UNC and UNF inch threads from 48 to 8 threads per inch, all in bores from Ø16 mm. It works in right-hand SIR boring bars, size 16, and alternatively in left-hand SEL 16 external holders. It has three corners: when one cutting edge wears out, rotate the insert to the next corner.

How the 16 IR AG60 insert cuts threads – rotation, feed, and passes

Feed equal to the pitch and several progressively shallower passes

Internal thread turning with a 16 IR AG60 insert in an SIR boring bar, feeding toward the lathe chuck
Schematic illustration: an insert in a right-hand SIR boring bar inside the workpiece bore. The insert is highlighted in gold.

One spindle revolution – one thread pitch

The workpiece rotates while the boring bar with the insert moves along the bore axis. For each spindle revolution, the feed is exactly one thread pitch, for example 2.5 mm for an M20 thread. In a typical setup, the right-hand insert feeds toward the chuck and cuts a right-hand thread.

The AG60 insert does not contact the thread crests. They retain the bore diameter machined before threading, so this dimension determines the finished thread.

Six successive passes of the 16 IR AG60 insert in an M20 thread groove, flank infeed
Schematic illustration of passes for an M20 thread (2.5 mm pitch). Lines 1–6 show successive cutting edge positions.

Successive passes deepen the profile

A threading insert does not cut the thread in a single pass. It cuts deeper with each pass, while the thickness of material removed decreases from the first pass to the last. The final pass removes approx. 0.05–0.08 mm; a thinner layer causes the material to be compressed rather than cut.

Use flank infeed at an angle of 29–30° to the radial direction. The insert then cuts mainly on one flank, and the chip flows to one side. The narrow AG60 tip cuts deeper than the ISO thread root: for M20, approx. 1.57 mm instead of 1.44 mm. Stop the infeed when a thread plug gauge or screw fits into the thread.

Cutting speed, spindle speed and number of passes

BMA is a submicron carbide grade with a PVD TiAlN coating. It machines steels, stainless steels and cast irons. The speeds in the table apply to thread turning with this insert.

Workpiece materialCutting speed vc [m/min]
P Unalloyed steel, cast steel, free-cutting steel120–180
P Low-alloy steel and cast steel (up to 5% alloying elements)80–130
P High-alloy and tool steel60–80
M Stainless steel and stainless cast steel90–130
K Gray cast iron120–130
K Ductile and malleable cast iron100–130

Select the number of passes to suit the pitch. Start in the middle of the range and add passes for harder materials.

Pitch P [mm]0.50.81.01.251.51.752.02.53.0
Threads per inch (equivalent)48322420161412108
Number of passes3–64–74–96–105–119–126–137–158–17

Spindle speed and feed for M20

Thread pitch of 2.5 mm marked between the centers of adjacent profile crests
Pitch P is measured along the axis between corresponding points on adjacent thread turns.

For each spindle revolution, the insert advances by one pitch: fn = P = 2.5 mm/rev.

Example: M20 in a hole in low-alloy steel, vc = 100 m/min
n = 1000 × vc / (π × d) = 1000 × 100 / (π × 20) ≈ 1590 rpm
vf = n × P = 1590 × 2.5
3975 mm/min
feed rate
d – thread diameter (20 mm), n – spindle speed, vc – cutting speed from the middle of the range in the table, vf – feed rate.

Universal 60° profile – pitches from 0.5 to 3.0 mm

One thread angle, many metric and inch threads

Thread groove with a pitch of 0.5 mm and the tip of a 16 IR AG60 insert
Pitch 0.5 mm
M20 × 1.5 thread with a pitch of 1.5 mm and the tip of a 16 IR AG60 insert
Pitch 1.5 mm – M20 × 1.5
M24 thread with a pitch of 3.0 mm and the tip of a 16 IR AG60 insert with a 60° angle
Pitch 3.0 mm – M24
Three threads shown at the same scale. The same insert tip cuts each groove: angle 60°, radius 0.05 mm.

The universal 60° insert has a narrow tip with a radius of 0.05 mm. It fits both a thread groove with a pitch of 0.5 mm and one with a pitch of 3.0 mm. The lathe feed determines the pitch, while the infeed over successive passes determines the depth. This allows one insert to cover every pitch in this range.

ISO metric threads and UN unified inch threads have a 60° angle. The insert can therefore cut metric coarse threads from M20 to M27 and any metric fine thread with a pitch of 0.5–3 mm, such as M20 × 1.5 or M36 × 3, in holes from Ø16 mm. It also cuts UNC threads from 3/4"-10 to 1"-8 and UNF threads from 3/4"-16 to 1 1/2"-12. For short production runs, this replaces several full-profile inserts, each of which fits only one pitch.

Pitch P [mm]2.53.0
Metric coarse threadM20, M22M24, M27

AG60 vs. a full-profile insert – how they differ

Thread crest, pitch range and root radius

This insert
Partial-profile insert in the thread groove, with machined flanks and root and unmachined crests

Partial profile 16 IR AG60

The insert machines the flanks and root of the groove over a pitch range of 0.5–3.0 mm. It does not touch the crests: they retain the previously turned diameter.

Choose for: short runs and various pitches.
Comparison
Full-profile insert in the thread groove, with machined flanks, root and crests

Full profile, e.g. 16 IR 1.5 ISO

The insert turns the flanks, root and crests of a thread with a 1.5 mm pitch. The crest is formed in the same cycle as the flanks, ensuring a repeatable profile in production runs.

Choose for: production runs of threads with a single pitch.
Feature16 IR AG60Full ISO profile
Pitch range0.5–3.0 mm, 48–8 threads per inchone pitch, e.g. 1.5 mm
Thread crestpreviously bored hole diameterturned together with the flanks
Hole preparationdiameter to the thread specificationdiameter with a small machining allowance
Corner radius0.05 mmmatches the ISO profile for the given pitch
Groove depth for M20approx. 1.57 mm, deeper than the ISO profile1.44 mm, matching the ISO profile
Inserts for pitches of 0.5–3.0 mm1one for each pitch

A full-profile insert finishes the thread including the crests, making it easier to maintain the profile throughout a production run. AG60 leaves the crests at the prepared hole diameter. Its narrow corner also produces a sharper thread root than the ISO profile at larger pitches.

Hole preparation for threading with an AG60 insert

Before threading, bore the hole within the 6H tolerance zone, e.g. M20: 17.294–17.744 mm, M24: 20.752–21.252 mm. A boring bar for size 16 inserts fits holes from Ø16 mm, so the smallest threads are M20 and metric fine threads of a similar diameter.

Decoding the 16 IR AG60 designation – element by element

Size, cutting hand, profile and grade in the insert designation, holder selection

Drawing of a 16 IR AG60 insert with dimensions L, IC, X, Y and a 60° corner with a radius of 0.05 mm
Dimensions according to catalogs for inserts of this standard. Enlarged corner detail.

16 IR AG60 insert dimensions

The number 16 indicates the insert size: an edge length of 16 mm and an inscribed circle IC of 9.525 mm, or 3/8 inch. It is not the thread diameter. Dimensions X = 1.2 mm and Y = 1.7 mm specify the position of the cutting tip relative to the sides of the insert. The corner has an angle of 60° and a radius of 0.05 mm.

16
Icon for insert size 16

Insert size

Edge 16 mm, IC 9.525 mm.
I
Internal thread icon

Internal thread

Turning inside holes with a boring bar.
R
Right-hand version icon

Right-hand version

SIR boring bar, feed toward the chuck.
AG60
60° partial-profile icon

60° partial profile

Pitches 0.5–3.0 mm, 48–8 threads per inch.
BMA
BMA carbide grade icon

Carbide grade

Submicron, PVD TiAlN, P20–P40 and K20–K30.

Mount the threading insert in right-hand SIR boring bars for size 16 inserts, e.g. SIR 0013 M16, SIR 0016 P16 or SIR 0020 P16. The insert has the same shape as a 16 EL left-hand external insert, so it can alternatively be mounted in a left-hand SEL 16 external holder to turn a thread on a shaft. External inserts are intended for regular work on shafts. The standard shim tilts the insert by 1–1.5° to suit the thread helix angle. The shim only needs to be changed for a large pitch on a small diameter.

The 16 IR AG60 BMA internal metric threading insert covers all pitches from 0.5 to 3.0 mm with a 60° angle in a single cutting edge. It is useful for short production runs of various metric and UN inch threads. It requires a hole prepared in advance, but eliminates the need for a separate insert for each pitch.

16 IR AG60 – questions about selection and use

Key information before selecting an insert

You can cut internal threads with a 60° angle and pitches from 0.5 to 3.0 mm in holes from Ø16 mm. These include metric coarse threads from M20 to M27, metric fine threads with these pitches, e.g. M20 × 1.5 or M36 × 3, as well as inch UNC threads from 3/4"-10 to 1"-8 and UNF threads from 3/4"-16 to 1 1/2"-12.

Bore the hole to size within the 6H tolerance zone, e.g. M20: 17.294–17.744 mm, M24: 20.752–21.252 mm. The insert will turn the flanks and root, while the crests remain at the hole diameter.

Right-hand SIR boring bars for size 16 inserts, e.g. SIR 0013 M16 (holes from Ø16 mm), SIR 0016 P16 (from Ø19 mm), SIR 0020 P16 (from Ø24 mm) or SIR 0025 R16 (from Ø29 mm). It has the same shape as a 16 EL left-hand external insert, so it also fits left-hand SEL 16 external holders as an alternative.

The number of passes increases with pitch: 3–6 for 0.5 mm, 5–11 for 1.5 mm and 8–17 for 3.0 mm. Start in the middle of the range and add passes for harder materials.

It is the insert size: an edge length of 16 mm and an inscribed circle of 9.525 mm (3/8 inch). The hole in the workpiece determines the thread diameter, so a 16 IR AG60 insert can turn both M20 and M27.
