Carbide insert tPI 48-16 inch threads 11 ER 55 degrees
search
  • Carbide insert tPI 48-16 inch threads 11 ER 55 degrees
  • Inch thread plate TPI 48-16 coils 11 ER 55 degrees - nr. 2
  • Inch thread plate TPI 48-16 coils 11 ER 55 degrees - nr. 3
Horn

Insert 11 ER A55 MTA Horn

Horn Horn
14237
Thread pitch: 48-16 coils3 sizes of this insert
€5.18 tax inc.

Net price: €4.21

Instant Shipping
W magazynie: +100 szt.
W magazynie: +100 szt.

Instant Shipping

Call and order: (44) 755-04-05

Description

11 ER A55 inch threading insert – universal 55° profile

Technical data for the partial-profile insert for threads from 48 to 16 threads per inch

Technical data
Designation11 ER A55 MTA
Typeexternal threading insert, right-hand
Profilepartial (incomplete), 55° angle
Threads per inch48–16
Pitch range0.53–1.59 mm
Corner radius0.05 mm
Insert size11: edge 11 mm, IC 6.35 mm
Cutting edges3
Tool holdersright-hand external SER, size 11, alternatively left-hand internal SIL 11
GradeMTA: submicron carbide, PVD TiAlN

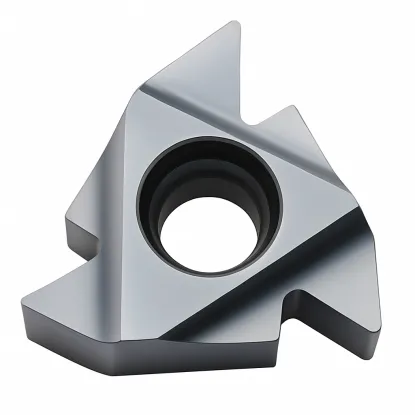

11 ER A55 MTA Horn inch threading insert, three corners with a 55° angle
Thread angle55°
Pitch range0.53–1.59 mm
Threads per inch48–16
Tool holdersSER 11

11 ER A55 inch threading insert cuts external threads with a 55° thread angle and 48 to 16 threads per inch. A single insert cuts G pipe threads from G 1/16 to G 3/8 and BSW and BSF Whitworth threads within this range. It works in size 11 right-hand SER holders and, alternatively, in left-hand SIL 11 boring bars. It has three corners: when one cutting edge wears out, index the insert to the next.

How the 11 ER A55 insert cuts threads – rotation, feed, and passes

Feed equal to the pitch and several progressively shallower passes

Thread turning with the 11 ER A55 insert in a SER holder, feeding toward the lathe chuck
Schematic illustration: insert in a right-hand SER holder in front of the lathe axis. Gold highlights the insert.

One spindle revolution – one thread pitch

The shaft rotates while the insert in the holder moves along its axis. For each spindle revolution, the feed is exactly one pitch, e.g., 1.337 mm for a G 1/4 thread. In a typical setup, the right-hand insert feeds toward the chuck and cuts a right-hand thread.

The A55 insert does not touch the thread crests. They retain the diameter turned before threading, so this dimension determines the finished thread.

Six successive passes of the 11 ER A55 insert in a G 1/4 thread groove, flank infeed
Schematic of the passes for a G 1/4 thread (1.337 mm pitch). Lines 1–6 show successive cutting edge positions.

Successive passes deepen the profile

A threading insert does not cut the thread in a single pass. It cuts deeper with each pass, while the thickness of material removed decreases from the first pass to the last. The final pass removes approx. 0.05–0.08 mm; a thinner layer causes the material to be compressed rather than cut.

Use flank infeed at an angle slightly less than 27.5°, which is half the thread angle. The insert then cuts mainly on one flank, and the chip flows to one side. The narrow A55 tip cuts deeper than the Whitworth thread root: for G 1/4, approximately 1.01 mm instead of 0.86 mm. Stop the infeed when a thread ring gauge or nut fits onto the thread.

Cutting speed, spindle speed and number of passes

MTA grade is a submicron carbide with a PVD TiAlN coating. It machines steels, stainless steels and cast irons. The speeds in the table apply to thread turning with this insert.

Workpiece materialCutting speed vc [m/min]
P Unalloyed steel, cast steel, free-cutting steel120–180
P Low-alloy steel and cast steel (up to 5% alloying elements)80–130
P High-alloy and tool steel60–80
M Stainless steel and stainless cast steel90–130
K Gray cast iron120–130
K Ductile and malleable cast iron100–130

Select the number of passes to suit the pitch. Start in the middle of the range and add passes for harder materials.

Threads per inch48281916
Pitch P [mm] (equivalent)0.530.911.341.59
Number of passes3–64–86–105–11
For 28 and 19 threads per inch, the number of passes is interpolated from the manufacturer's table.

Spindle speed and feed for G 1/4

Thread pitch of 1.337 mm marked between the centers of adjacent profile crests
Pitch P is measured along the axis between corresponding points on adjacent thread turns.

For each spindle revolution, the insert advances by one pitch: fn = P = 1.337 mm/rev.

Example: G 1/4 in low-alloy steel, vc = 100 m/min
n = 1000 × vc / (π × d) = 1000 × 100 / (π × 13.157) ≈ 2420 rpm
vf = n × P = 2420 × 1.337
3235 mm/min
feed rate
d – thread diameter (13.157 mm), n – spindle speed, vc – cutting speed from the middle of the range in the table, vf – feed rate.

Universal 55° profile – from 48 to 16 threads per inch

One profile angle, many pipe and Whitworth threads

G 1/8 thread with 28 threads per inch and the tip of the 11 ER A55 insert
28 threads per inch – G 1/8
G 1/4 thread with 19 threads per inch and the tip of the 11 ER A55 insert
19 threads per inch – G 1/4
BSW 3/8" thread with 16 threads per inch and the tip of a 11 ER A55 insert with a 55° angle
16 threads per inch – BSW 3/8"
Three threads shown at the same scale. The same insert tip cuts each groove: angle 55°, radius 0.05 mm.

The universal 55° insert has a tip radius of 0.05 mm. It fits into both a thread groove with 28 threads per inch and one with 16 threads per inch. The threads per inch are determined by the lathe feed, and the depth by the infeed over successive passes. This allows one insert to cut any 55° thread within this range.

G pipe threads according to ISO 228-1 and Whitworth threads have a 55° thread angle. The insert can therefore cut G threads from G 1/16 to G 3/8, BSW threads from 1/4" to 3/8", and BSF threads from 1/4" to 9/16". For short production runs, this replaces several full-profile inserts, each suitable for a single threads-per-inch value.

Threads per inch2820191816
G pipe threadG 1/16, G 1/8—G 1/4, G 3/8——
BSW thread—1/4"—5/16"3/8"

A55 versus a full-profile insert – how they differ

Thread crest, pitch range and root radius

This insert
Partial-profile insert in the thread groove, with machined flanks and root and unmachined crests

Partial profile 11 ER A55

The insert machines the flanks and root of the groove over a range of 48 to 16 threads per inch. It does not touch the crests: they retain the previously turned diameter.

Choose for: short runs and various pitches.
Comparison
Full-profile insert in the thread groove, with machined flanks, root and crests

Full profile, e.g., 11 ER 19 W

The insert cuts the flanks and the rounded root and crests of a thread with 19 threads per inch. The radii are formed in the same cycle as the flanks, ensuring a repeatable profile in production runs.

Choose for: production runs of threads with a single pitch.
Feature11 ER A55W full profile
Pitch rangefrom 48 to 16 threads per inchone number of threads per inch, e.g., 19
Thread crestpreviously turned diameterturned together with the flanks
Shaft preparationdiameter to the thread specificationdiameter with a small machining allowance
Corner radius0.05 mmmatches the Whitworth profile for the specified pitch
Groove depth for G 1/4approx. 1.01 mm, deeper than the Whitworth profile0.86 mm, matching the Whitworth profile
Inserts for 48–16 threads per inch1one for each pitch

A full-profile insert finishes the thread, including its crests, making the profile easier to maintain in production runs. A55 leaves the crests at the diameter you turn. Its narrow corner also produces a sharper thread root than the Whitworth profile.

Thread diameter and root with an A55 insert

Before threading, turn the major diameter to the thread dimension, e.g., G 1/4 in class A: 12.907–13.157 mm. The corner radius of 0.05 mm produces a sharper root than the Whitworth profile, which rounds the root with a radius of 0.137 times the pitch (0.18 mm for G 1/4). Where the full profile is important, choose a W full-profile insert for the specified number of threads per inch.

Decoding 11 ER A55 – element by element

Size, cutting hand, profile and grade in the insert designation, holder selection

Drawing of the 11 ER A55 insert with dimensions L, IC, X, Y and a 55° corner with a radius of 0.05 mm
Dimensions according to catalogs for inserts of this standard. Enlarged corner detail.

Dimensions of the 11 ER A55 insert

The number 11 indicates the insert size: an edge length of 11 mm and an inscribed circle IC of 6.35 mm, or 1/4 inch. It is not the thread diameter. Dimensions X = 0.8 mm and Y = 0.9 mm specify the position of the cutting tip relative to the sides of the insert. The corner has an angle of 55° and a radius of 0.05 mm.

11
Icon for insert size 11

Insert size

Edge 11 mm, IC 6.35 mm.
E
External thread icon

External thread

Turning on shafts and journals.
R
Right-hand version icon

Right-hand version

SER holder, feed toward the chuck.
A55
55° partial-profile icon

55° partial profile

From 48 to 16 threads per inch.
MTA
MTA carbide grade icon

Carbide grade

Submicron, PVD TiAlN, P20–P40 and K20–K30.

Mount the threading insert in right-hand external SER holders for size 11 inserts, e.g., SER 1010 H11, SER 1212 K11, or SER 1212 M11. The insert has the same shape as the left-hand internal 11 IL insert, so it can alternatively be mounted in a left-hand SIL 11 boring bar to cut an internal thread. Internal inserts are intended for regular internal threading. The standard shim tilts the insert by 1–1.5° to suit the thread helix angle. The shim only needs to be replaced for a large pitch on a small diameter.

The 11 ER A55 inch threading insert covers threads from 48 to 16 threads per inch with a 55° thread angle using a single cutting edge. It is useful for short production runs of various G pipe and Whitworth threads. It requires a prepared diameter but eliminates the need for a separate insert for each pitch.

11 ER A55 – selection and application questions

Key information before selecting an insert

You can cut external threads with a 55° thread angle and 48 to 16 threads per inch: G pipe threads from G 1/16 to G 3/8, BSW Whitworth threads from 1/4" to 3/8", and BSF threads from 1/4" to 9/16".

Turn the major diameter to the thread dimension, e.g., G 1/4 in class A: 12.907–13.157 mm. The insert cuts the flanks and root, while the crests remain at this diameter.

Right-hand SER external holders for size 11 inserts, such as SER 0808 H11, SER 1010 H11, SER 1212 K11 or SER 1212 M11. It has the same shape as the 11 IL left-hand internal insert, so it also fits left-hand SIL 11 boring bars as an alternative.

The number of passes increases with pitch: 4–8 at 28 threads per inch, 6–10 at 19 threads per inch, and 5–11 at 16 threads per inch. Start at the middle of the range and add passes for harder materials. Some values were interpolated from the manufacturer's table.

This is the insert size: an edge length of 11 mm and an inscribed circle of 6.35 mm (1/4 inch). The shaft being machined determines the thread diameter, so the 11 ER A55 insert can cut both G 1/16 and G 3/8 threads.
