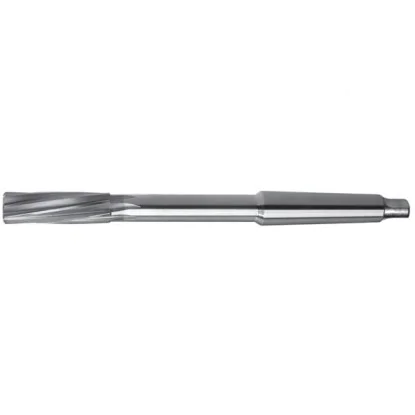

Machine reamer fi 39 H7 NRTc DIN 208 HSSE
search
  • Machine reamer fi 39 H7 NRTc DIN 208 HSSE
  • Machine reamer fi 39 H7 NRTc DIN 208 HSSE - nr. 1
Artykuły Techniczne

Machine reamer fi 39 H7 NRTc DIN 208 HSSE

Artykuły Techniczne Artykuły Techniczne
106707
€100.34 tax inc.

Net price: €81.58

Brak w magazynie
Brak w magazynie

Call and order: (44) 755-04-05

Description

Diameter D Ø39 mm
Tolerance H739.000–39.025 mm
Morse taper MT4
Material HSSE

Taper shank machine reamer Ø39 H7 for metal — technical data

NRTc — shank-type finishing reamer, Morse taper shank, HSSE DIN 208

Technical Data
Cutting diameter DØ39 H7 (39.000–39.025 mm)
Morse taperMT4
Flute length l81 mm
Overall length L329 mm
Number of teeth Z12
TypeNRTc — shank-type finishing reamer, Morse taper shank
Dimensional standardDIN 208
MaterialHSSE (cobalt high-speed steel)
Machine reamer Ø39 H7 for metal with Morse taper shank NRTc DIN 208 HSSE — finishing reamer for holes to H7 tolerance

What H7 tolerance means for a diameter of 39 mm

ClassDeviations [mm]Dimension [mm]
H6+0.016 / 039.000 – 39.016
H7+0.025 / 039.000 – 39.025SELECTED
H8+0.039 / 039.000 – 39.039
H9+0.062 / 039.000 – 39.062

The reamed hole falls within the tolerance zone 39.000–39.025 mm (ISO 286-2) — an accuracy level typical of dowel pin holes and sliding fits, among other applications.

Cutting data for the machine reamer Ø39 H7

Indicative values Ø39 mm Z = 12

Material group (ISO 513) Vc [m/min] fz [mm/tooth] n [rpm] Ø39 f [mm/min] Z=12
PStructural and carbon steel8–100.20–0.2865156
MStainless steel2–30.20–0.281638
KCast iron3–50.20–0.282458
NAluminum and light alloys12–160.24–0.3298282

Vc — cutting speed, fz — feed per tooth (catalog values for HSS, selected for a diameter of Ø39 mm). Spindle speeds were calculated for the lower end of the range: n = (Vc × 1000) ÷ (π × D), feed rate per minute f = fz × Z × n for Z = 12. Start with the lower values and adjust according to the material and clamping rigidity. For an HSSE (cobalt) reamer, the cutting parameters can be increased by approx. 25% compared with HSS.

You may also need: Cutting parameters calculator

Applications of the Ø39 H7 machine reamer

Hole finishing to H7 tolerance

Machine reamer Ø39 H7 for metal with a taper shank Morse MT4 — NRTc shank-type finishing reamer according to DIN 208 made of cobalt high-speed steel HSSE (approx. 5% Co). The taper shank provides secure, concentric mounting directly in the spindle socket or in a reduction sleeve — on lathes, milling machines, drilling machines, and CNC machine tools. The tool face has a ~45° lead-in chamfer for centered entry, while the guiding margins on the cutting edges keep the tool aligned with the hole axis.

The Morse taper shank reamer Ø39 H7 for metal removes the allowance left after drilling and brings the hole to its final size within the tolerance zone H7 (39.000–39.025 mm). Reaming straightens the hole axis, improves roundness and cylindricity, and reduces surface roughness to approx. Ra 0.4–1.6 µm. 12 unequally spaced cutting edges reduce vibration and machining marks. Larger diameters are used for bearing and bushing seats and holes in machine housings, where consistent size over the full length is essential. Suitable for reaming steel, cast iron, and nonferrous metals — the cobalt content allows HSSE to retain hot hardness longer than standard HSS and perform more reliably in stainless steel.

Workpiece materials

✓Structural and carbon steel
✓Gray cast iron
✓Aluminum and nonferrous alloys
▲Stainless steels — cobalt-alloyed HSSE handles them significantly better than HSS; coolant is still recommended
✗Hardened steels above 45 HRC

Guidelines for correct reaming

  • Pre-drilled hole Ø38.6 mm — stock allowance of 0.4 mm on the diameter.
  • Drill the initial hole perpendicular to the surface and with minimal runout — a finishing reamer follows the existing hole and will not correct its misalignment.
  • Use coolant (emulsion or cutting oil); cast iron can be machined dry.
  • Withdraw the tool without reversing its rotation — reverse rotation damages the cutting edges.

Frequently asked questions — Ø39 H7 reamer

Drill a hole Ø38.6 mm — stock allowance of approx. 0.4 mm on the diameter. Too little allowance causes the material to be compressed rather than cut; too much overloads the cutting edges and reduces hole accuracy.

Use a Morse taper reduction sleeve — it allows the reamer to be mounted in a socket with a larger taper number without losing mounting concentricity.

The hole falls within the tolerance zone 39.000–39.025 mm, and surface roughness is approx. Ra 0.4–1.6 µm — this accuracy is sufficient for sliding fits and dowel pin holes.
