Description
Technical data of insert for metric 11 IR A60 internal threads
| Technical data | |
|---|---|
| Side length L | 11 mm |
| Thread profile | 60 degrees |
| Insert type | Metric Inside Right Thread |
| Thread pitch range P | 0.5 to 1.5 mm |
| Thread profile | partial ISO |
| Carbide grade BMA | Suitable for carbon steel, alloy steel, cast iron, stainless steel, cast steel, cast iron and non-ferrous metals |
Insert for metric internal threads - universal profile A60

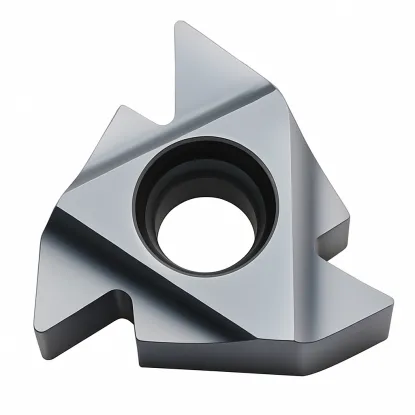

Threading insert 11 IR A60 MTA is a tool for internal threading. It is used for making right-hand metric internal threads with a 60-degree angle on the lathe. Designed for ISO-compliant threads, the A60 profile is universal. Allows threading of different pitches within the working range with one insert. It works well for machining structural steel, aluminum, cast iron and cast steel. The 11 mm size provides access to smaller holes and precision machining. MTA Horn grade provides cutting stability and long blade life. Ideal for machine shops requiring a versatile tool for metric internal threads.
Key benefits of the 11 IR A60 MTA insert
- A60 universal profile with a 60-degree angle supports a variety of metric thread pitches
- Dedicated to ISO 68-1 compliant metric internal threads
- 11 mm size provides access to smaller threaded holes
- Universal application eliminates the need for multiple full profile inserts
- MTA grade Horn provides blade durability and precision for internal threading
The insert is appreciated by professionals for its versatility in internal threading on a lathe of various metric pitches. It will prove itself in the production of machine parts, mechanical repairs, manufacture of threaded parts and service of equipment. Ideal for mechanical workshops, mass production and technical services requiring flexibility. Bet on a solution proven by machining industry professionals. Order the Horn A60 insert to improve metric internal threading in your workshop.
Cutting parameters for the right 11 IR A60 internal insert Horn
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Number of recommended passes depending on thread pitch
| Pitch mm [TPI zwoje] | 0,5-[48] | 0,8-[32] | 10-[24] | 1,25-[20] | 1,5-[16] |
|---|---|---|---|---|---|
| Number of transitions | 3-6 | 4-7 | 4-9 | 6-10 | 5-11 |
Frequently asked questions
1. What threads is the 11 IR A60 MTA insert suitable for?
The insert is designed for metric internal threads conforming to ISO 68-1. The A60 profile with an angle of 60 degrees is universal for different pitches. You can make a variety of metric and fine threads with one insert. The 11 mm size provides access to smaller threaded holes.
2. How is the A60 profile different from a full profile?
The A60 profile is a universal partial profile for various metric pitches. A full profile insert is dedicated to one specific pitch. The universal profile is more flexible and economical for workshops. The full profile offers the highest quality for a single thread pitch.
3. Why choose the 11mm size?
The 11 mm size provides access to smaller threaded holes. The insert is compact and precise for internal machining. It is ideal for medium and smaller diameter metric threads. Larger sizes like 16 mm are for larger holes.
4. What is the height of the turned thread outline
H1 - Height of thread outline given in [mm] || P - pitch of thread given in [mm]
H1 [mm]=0.54127*P
