Technical data of insert for metric threads 22 ER external 4.0 mm
| Technical data | |
|---|---|
| Side length L | 22 mm |
| Thread profile | 60 degrees |
| Insert type | Metric External Right-hand thread |
| Thread pitch range P | 4.0 mm |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steels, alloy steels, cast iron, stainless steels, cast iron and non-ferrous metals |

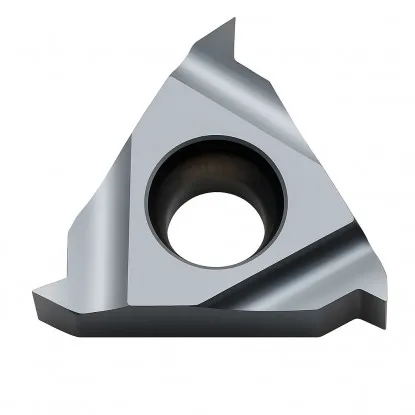

Carbide insert for threading 22 ER 4 ISO HTA Horn is a specialized turning tool designed for turning metric threads with a 60-degree triangular profile in accordance with the ISO standard. Thanks to its full profile with a pitch of 4 mm, the insert allows precise cutting of both ordinary metric threads (M) and fine threads (MF).
Carbide insert it is made of high-quality HTA grade carbide, which is characterized by wear resistance and stability in machining a wide range of materials - from carbon and alloy steels, through cast iron, to stainless steels and non-ferrous metals. The protective coating ensures longer life and high quality of the resulting thread.
22 ER 4 ISO HTA Horn fits lathe cutters with a 22 mm socket, such as SER 20x20 22, SER 25x25 22, SER 32x32 22 and SER 40x40 22. Fastening is carried out with a Torx M4x16 screw, which ensures a secure and stable seating of the insert in the socket and safe operation under high loads.
- Universal application - turning of metric common and fine threads with an angle of 60 degrees.
- Precision and repeatability - full insert profile ensures compliance with ISO standard and ideal thread outline.
- Stable clamping - 22 mm socket and M4x16 Torx screw guarantee rigidity during machining.
- High durability - HTA carbide grade and protective coating increase wear resistance.
Carbide insert 22 ER 4 ISO HTA Horn is a reliable solution for factories expecting high productivity, long tool life and superior threading quality.
Cutting parameters for 22 ER insert pitch 4 mm Horn
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Frequently asked questions
How many passes of the insert are necessary to obtain a thread?
The manufacturer recommends: to make a thread with a pitch of 4 mm, you need to make between 10 and 20 passes.
What kind of turning knives does the insert fit to?
Carbide insert it is compatible with most standard turning knives for right-hand external threads, equipped with a 22 mm insert slot.
What threads can be turned with this insert?
Carbide insert allows cutting metric threads with a pitch of 4 mm, regardless of the thread diameter. Threads such as M36, M39 and metric fine-coil M42x4, M45x4, M48x4, M52x4 and all others with a pitch of 4 mm are possible to turn.
What does full thread profile mean?
Full thread profile means that the cutting edge of the insert reproduces the entire outline of the thread - both the angle and its base and apex. As a result, a thread made with a full-profile insert immediately has the correct shape according to the standard, without the need for additional machining of the diameter. This solution provides greater accuracy, a smooth thread surface and dimensional repeatability, which translates into a stable machining process and a better fit of parts.
What is the height of the turned thread outline
H1 - Thread outline height given in [mm] || P - thread pitch given in [mm]
H1 [mm]=0.54127*P
H1=0.54*4mm=2.16mm
