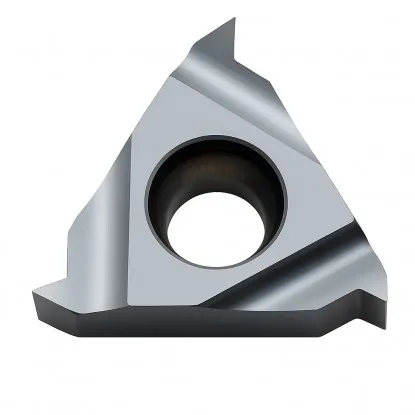

Technical data of insert for metric threads 22 ER external 4.5 mm
| Technical data | |
|---|---|
| Side length L | 22 mm |
| Thread profile | 60 degrees |
| Insert type | Metric External Right-hand thread |
| Thread pitch range P | 4.5 mm |
| Thread profile | Full ISO |
| Carbide grade MTA | Suitable for carbon steels, alloy steels, cast iron, stainless steels, cast iron and non-ferrous metals |
Carbide insert for threading 22 ER 4.5 ISO HTA Horn is a specialized cutting tool designed for turning metric external threads with a 60-degree triangular profile. Thanks to its full profile, the insert ensures the execution of the entire thread outline - from the base to the apex - which guarantees accuracy, repeatability and compliance with the ISO standard.
Carbide insert it is dedicated to threads with a pitch of 4.5 mm, allowing precise production of large metric threads, both ordinary (M) and fine threads (MF). Its 22 ER geometry makes it suitable for machining right-hand external threads in a wide range of industrial applications.
Made from high-quality HTA-grade carbide, the insert features enhanced wear resistance and process stability even when operating in harsh environments. The protective coating further enhances tool life and produces a smooth machined thread surface.
22 ER 4,5 ISO HTA Horn fits lathe knives with a 22 mm socket, such as SER 20x20 22, SER 25x25 22, SER 32x32 22 and SER 40x40 22. Attachment is by means of a Torx M4x16 screw, which ensures stability and work safety.
- Precision manufacturing of ISO threads - full profile guarantees perfect shape and compliance with the standard.
- Versatility of application - turning of common and fine threads with an angle of 60 degrees and a pitch of 4.5 mm.
- Stable fastening - securely seated in a 22 mm socket with a Torx M4x16 screw.
- Durability and performance - HTA carbide and protective coating ensure long tool life.
Carbide insert 22 ER 4.5 ISO HTA Horn is a reliable tool for production shops looking for superior quality, stability and efficiency in turning metric threads.
Cutting parameters for 22 ER insert pitch 4.5 mm Horn
| ISO Symbol | Material | Cutting speed Vc [m/min] |
|---|---|---|
| P | Steel | 50-180 |
| M | Stainless steel | 50-90 |
| K | Cast iron | 65-120 |
| N | Aluminum and non-ferrous materials | 90-180 |
Frequently asked questions
How many passes of the insert are necessary to obtain a thread?
The manufacturer recommends: to make a thread with a pitch of 4.5 mm, you need to make between 10 and 20 passes.
To which turning knives does the insert fit?
Carbide insert it is compatible with most standard turning knives for external right-hand threads, equipped with a socket for inserts of 22 mm.
What threads can be turned with this insert?
Carbide insert allows cutting metric threads with a pitch of 4.5 mm, regardless of the thread diameter.
What does full thread profile mean?
Full thread profile means that the cutting edge of the insert reproduces the entire outline of the thread - both the angle and its base and apex. As a result, a thread made with a full-profile insert immediately has the correct shape according to the standard, without the need for additional machining of the diameter. This solution provides greater accuracy, a smooth thread surface and dimensional repeatability, which translates into a stable machining process and a better fit of parts.
What is the height of the turned thread outline
H1 - Thread outline height given in [mm] || P - thread pitch given in [mm]
H1 [mm]=0.54127*P
H1=0.54*4.5mm=2.43mm
