Description
Technical data for the ground wood end mill Ø2 mm
| Technical data | |
|---|---|
| Working diameter d1 | 2 mm |
| Shank diameter d2 | 3.175 mm |
| Flute length l2 | 8 mm |
| Overall length l1 | 38 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø2 mm wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 151 | 0.036 | 24000 | 864 |
| NHardwood | 126 | 0.022 | 20000 | 440 |
| NMDF / plywood | 138 | 0.028 | 22000 | 616 |

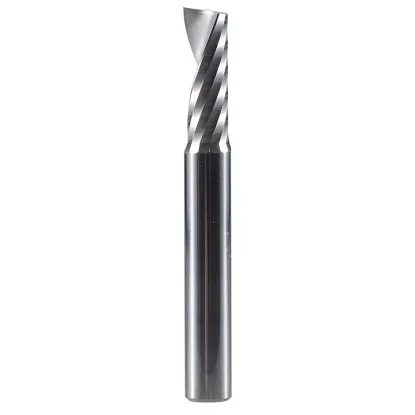

Ø2 mm wood end mill – single-flute solid carbide (VHM) for CNC detail work
Ø2 mm wood end mill is a solid carbide (VHM) tool for precision machining of small parts on CNC machines. The 2 mm diameter offers an excellent balance between detail accuracy and tool strength – it allows narrow slots and lettering to be machined faster than with a 1 mm end mill while maintaining resistance to breakage. The single ground cutting edge from manufacturer Horn on a 3.175 mm (1/8") shank ensures a clean edge and repeatability.
Key benefits of the Ø2 mm single-flute end mill
- Precision with greater strength – the 2 mm diameter is significantly more resistant to breakage than 1 mm end mills
- Upcut geometry effectively evacuates chips from a narrow slot and prevents clogging
- Enlarged flute of the single-flute design allows higher feed rates than two-flute end mills
- Solid carbide (VHM) construction retains sharpness many times longer than HSS tools
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The Ø2 mm carbide wood end mill is ideal for engraving letters, small assembly slots, model making and decorative contours. Its sharp, positive rake angle provides a light cutting action, minimizing the risk of tear-out on delicate edges.
This Ø2 mm single-flute end mill is chosen by craftspeople and CNC operators who require accurate detail and reliable operation.
Frequently asked questions
The 2 mm end mill is designed for detail work: engraving letters, narrow slots, inlay work and model making in solid wood, MDF, plywood and plastics such as acrylic and PVC. It produces finer detail than 3–4 mm end mills while being noticeably more durable than a 1 mm micro end mill.
The optimal spindle speed is 20000–24000 rpm and the feed rate is 440–864 mm/min, depending on wood hardness. We recommend a shallow depth of cut per pass (approx. 0.5–1 mm) and smooth tool movement to protect the thin cutting edge and improve edge quality.
The 2 mm end mill cuts a slightly wider line but is significantly more resistant to breakage and allows higher feed rates. Choose the 1 mm end mill for the finest details, while the 2 mm version is a safer and more productive choice for most graphic and decorative work.
