Description
Technical data for the ground wood end mill Ø3 mm
| Technical data | |
|---|---|
| Working diameter d1 | 3 mm |
| Shank diameter d2 | 3.175 mm |
| Flute length l2 | 32 mm |
| Overall length l1 | 60 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø3 mm wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 207 | 0.054 | 22000 | 1188 |
| NHardwood | 170 | 0.033 | 18000 | 594 |
| NMDF / plywood | 188 | 0.042 | 20000 | 840 |

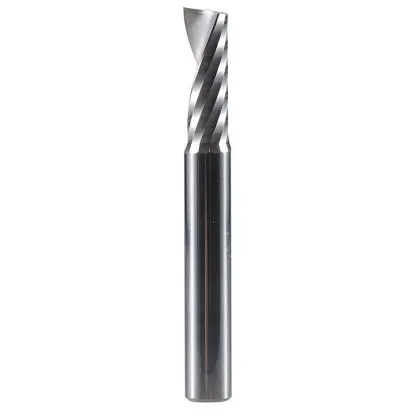

Ø3 mm wood end mill – single-flute solid carbide (VHM) with a long flute length
Ø3 mm wood end mill is a solid carbide (VHM) tool combining detail precision with an exceptionally long flute length of 32 mm for this diameter. This allows deeper slots and pockets to be milled than with typical 3 mm end mills with a short cutting edge. The ground single-flute design from manufacturer Horn on a 3.175 mm (1/8") shank ensures clean cutting and unrestricted chip evacuation, even from deeper recesses.
Key benefits of the Ø3 mm single-flute end mill
- Long flute length of 32 mm allows deeper slot and pocket milling with a small diameter
- Upcut geometry lifts chips upward, preventing sawdust from clogging the deep slot
- Single-flute design provides an enlarged flute and allows higher feed rates without the risk of overheating
- Solid carbide (VHM) core maintains rigidity and sharpness significantly longer than HSS tools
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The Ø3 mm carbide wood end mill is ideal for milling lettering, decorative slots, small assembly pockets and engraving deeper patterns. The long cutting edge allows thicker workpieces to be machined in a single full-depth pass or in several smooth step-down passes.
This Ø3 mm single-flute end mill will be appreciated by CNC operators who need both a small diameter and greater cutting reach.
Frequently asked questions
With a flute length of 32 mm, the 3 mm end mill allows significantly deeper slots and pockets than standard short end mills of this diameter. In harder materials, use several step-down passes and retract the tool to improve chip evacuation from the deep slot.
The recommended spindle speed is 18000–22000 rpm at a feed rate of 594–1188 mm/min, depending on wood hardness. When using the full cutting edge depth, limit the depth per pass and maintain a constant feed rate to avoid vibration with the greater tool overhang.
The tool machines softwood, hardwood, MDF panels, plywood and plastics, including acrylic and PVC. The single cutting edge ensures a clean edge and ample chip space, which is particularly important for deep slots machined with a long flute length.
