Description
Technical data for the ground wood end mill Ø4 mm
| Technical data | |
|---|---|
| Working diameter d1 | 4 mm |
| Shank diameter d2 | 4 mm |
| Flute length l2 | 15 mm |
| Overall length l1 | 45 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø4 mm wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 264 | 0.072 | 21000 | 1512 |
| NHardwood | 214 | 0.044 | 17000 | 748 |
| NMDF / plywood | 239 | 0.056 | 19000 | 1064 |

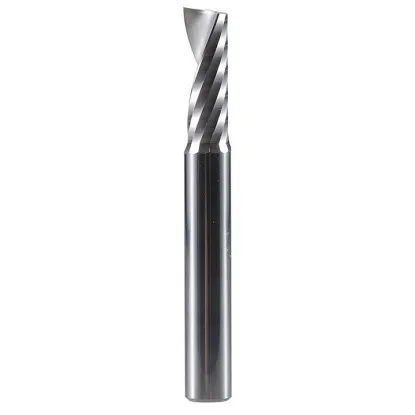

Ø4 mm wood end mill – single-flute solid carbide (VHM) with a rigid design
Ø4 mm wood end mill is a solid carbide (VHM) tool with a short overall length of 45 mm, providing exceptional rigidity and vibration resistance. The short overhang ensures stable, accurate cutting, making the end mill ideal for precision slots and small parts. The single ground cutting edge from manufacturer Horn ensures a clean edge and efficient chip removal.
Key benefits of the Ø4 mm single-flute end mill
- Short, rigid design – the overall length of 45 mm minimizes vibration and increases accuracy
- Upcut geometry ejects chips upward and protects the bottom edge of the workpiece from tear-out
- Enlarged flute of the single-flute design allows higher feed rates without clogging
- Solid carbide (VHM) core ensures many times longer tool life than HSS end mills
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The Ø4 mm carbide wood end mill is ideal for milling narrow slots, small pockets, inlay work and contour cutting of small parts. The rigid, short body maintains high precision even with the cutting edge fully engaged.
This Ø4 mm single-flute end mill is chosen by CNC operators who value stable tool movement and dimensional accuracy.
Frequently asked questions
The overall length of 45 mm means a short tool overhang, providing greater rigidity, less vibration and more accurate dimensions. This is ideal for precision slots and small details where repeatability and a clean edge matter.
The recommended spindle speed is 17000–21000 rpm and the feed rate is 748–1512 mm/min, depending on material hardness. The short, rigid design ensures stable operation, but in hardwood, limit the depth per pass to protect the cutting edge.
The 4 mm end mill machines softwood, hardwood, MDF panels, plywood and plastics, including acrylic and PVC. The single cutting edge and upcut geometry ensure precise cutting without burning, while the large chip space prevents the slot from clogging.
