Description
Technical data for the Ø5 mm Long ground wood end mill
| Technical data | |
|---|---|
| Working diameter d1 | 5 mm |
| Shank diameter d2 | 5 mm |
| Flute length l2 | 20 mm |
| Overall length l1 | 100 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø5 mm Long wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 314 | 0.090 | 20000 | 1800 |
| NHardwood | 251 | 0.055 | 16000 | 880 |
| NMDF / plywood | 283 | 0.070 | 18000 | 1260 |

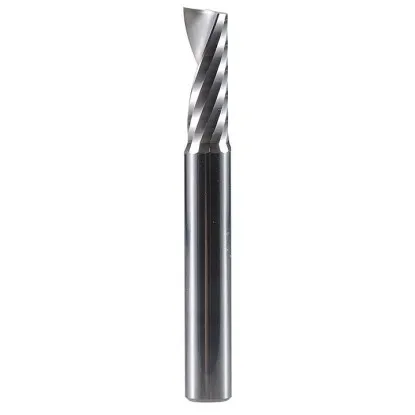

Ø5 mm Long wood end mill – single-flute solid carbide (VHM) with increased overhang
Ø5 mm Long wood end mill is a solid carbide (VHM) tool with an overall length of 100 mm, designed for work requiring extended reach. The extended shank reaches the bottom of deep recesses and allows machining of workpieces for which the standard 5 mm end mill is too short. The single ground cutting edge from manufacturer Horn ensures clean cutting and efficient upward chip evacuation even with greater overhang.
Key benefits of the Ø5 mm Long single-flute end mill
- Overall length of 100 mm provides extended reach and access to deeply recessed surfaces
- Upcut geometry lifts chips upward, which is essential when milling in recesses
- Enlarged flute of the single-flute design prevents clogging with sawdust
- Solid carbide (VHM) core maintains the rigidity of the extended body and a long cutting edge life
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The long Ø5 mm carbide end mill for wood is suitable for milling in deep recesses, machining grooves in thicker parts, and applications where the holder must remain a safe distance from the material. The extended shank increases reach, so feed the tool steadily and limit the depth per pass.
If rigidity and precision in shallow grooves are your main priorities, choose the standard 5 mm end mill for wood. The long version is designed for applications where reach is the primary requirement.
Frequently asked questions
Choose the long version (overall length 100 mm) when extended reach is required for milling deep recesses, machining thicker parts, or keeping the holder well away from the material. For shallow grooves and applications requiring maximum rigidity, the standard 5 mm end mill is the better choice.
The cutting parameters are the same as for the 5 mm end mill: 16000–20000 rpm and a feed rate of 880–1800 mm/min, depending on wood hardness. With greater overhang, we recommend a slightly smaller depth of cut per pass and steady feeding to limit vibration of the long shank.
The solid carbide (VHM) construction maintains high rigidity even at a length of 100 mm. To maintain a clean edge, adjust the depth of cut and feed rate to the tool overhang: the farther the end mill extends from the holder, the more conservative the cutting parameters should be.
