Description
Technical data for the ground wood end mill Ø8 mm
| Technical data | |
|---|---|
| Working diameter d1 | 8 mm |
| Shank diameter d2 | 8 mm |
| Flute length l2 | 22 mm |
| Overall length l1 | 60 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø8 mm wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 452 | 0.144 | 18000 | 2592 |
| NHardwood | 352 | 0.088 | 14000 | 1232 |
| NMDF / plywood | 402 | 0.112 | 16000 | 1792 |
End mill for wood Ø8 mm – efficient single-flute solid carbide (VHM) tool for CNC machining
Ø8 mm wood end mill is a solid carbide (VHM) tool for efficient machining of larger parts on CNC machines. The 8 mm diameter allows rapid material removal and machining of wider grooves and pockets while maintaining a clean edge. The ground, single-flute design from Horn with upcut geometry guarantees efficient upward chip evacuation and repeatability in series production.
Key benefits of the Ø8 mm single-flute end mill
- High cutting efficiency – the larger diameter reduces machining time for grooves and pockets
- Upcut geometry effectively cools the cutting zone and leaves a clean bottom edge
- 50–60% larger flute than in two-flute end mills – reliable evacuation of large chip volumes
- Solid carbide (VHM) core provides 10–20 times longer tool life than HSS tools
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The Ø8 mm carbide end mill for wood is ideal for roughing and finishing grooves, pockets, and countertops, as well as cutting out larger furniture parts. The high positive rake angle reduces cutting forces, allowing smooth operation even at high material removal rates.
This single-flute Ø8 mm end mill is chosen by CNC operators who prioritize productivity. If you need greater reach and deeper cuts, choose the long 8 mm end mill for wood.
Frequently asked questions
The 8 mm end mill is designed for efficient machining of wide grooves, pockets, and countertops, as well as cutting out larger parts in solid wood, MDF, plywood, and plastics such as acrylic. It is suitable for both roughing and finishing when rapid material removal is required.
The recommended spindle speed is 14000–18000 rpm, with a feed rate of 1232–2592 mm/min depending on wood hardness. For roughing and harder species, reduce the depth per pass and feed rate to protect the cutting edge and maintain edge quality.
The standard version has an overall length of 60 mm and a flute length of 22 mm, providing high rigidity for typical applications. The long version (l1 = 100 mm, l2 = 30 mm) provides greater reach and allows deeper cuts in thicker materials, at the cost of slightly greater susceptibility to vibration.
Product accessories
Reviews
No customer reviews for the moment.
Shipping
All orders are delivered by courier company GLS. For orders exceeding 369 PLN gross shipping is FREE
| Courier GLS | Przelew24 / Prepayment | 14,76 zł gross | Delivery time 1 working day |
| Courier GLS | Cash on delivery | 17,26 zł gross | Lead time 1 working day |

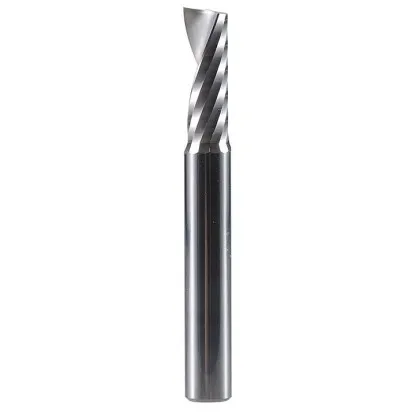

Wood milling cutter 8 mm Z-1 solid carbide (VHM) Podgląd zdjęć produktu
