Description
Technical data for the ground wood end mill Ø10 mm
| Technical data | |
|---|---|
| Working diameter d1 | 10 mm |
| Shank diameter d2 | 10 mm |
| Flute length l2 | 32 mm |
| Overall length l1 | 75 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø10 mm wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 565 | 0.180 | 18000 | 3240 |
| NHardwood | 440 | 0.110 | 14000 | 1540 |
| NMDF / plywood | 503 | 0.140 | 16000 | 2240 |

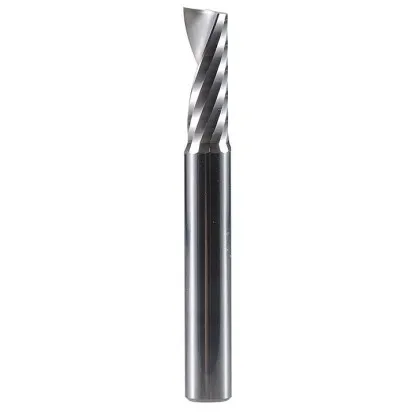

Ø10 mm wood end mill – single-flute solid carbide (VHM) for CNC machining
Ø10 mm wood end mill is a professional solid carbide (VHM) tool designed for efficient machining on CNC machines. The single-flute design with upcut geometry effectively ejects chips upward, eliminating the risk of overheating the material and ensuring a clean machined surface. The ground cutting edge from manufacturer Horn ensures precision and repeatability in series production.
Key benefits of the single-flute end mill
- 50-60% larger flute compared with two-flute end mills – maximum chip evacuation without clogging
- Upcut geometry provides effective cooling of the cutting zone and a clean bottom edge on the workpiece
- Solid carbide (VHM) construction ensures 10-20 times longer tool life than HSS tools
- Ground cutting edge surface allows operation at high feed rates without the risk of overheating
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The Ø10 mm carbide wood end mill is suitable for slot milling, pocket milling and contour cutting. Its high positive rake angle reduces cutting forces, resulting in lower spindle loads and longer tool life.
This Ø10 mm single-flute end mill is chosen by CNC operators who value productivity and finish quality. If you need greater reach, choose the 10 mm Long wood end mill.
Frequently asked questions
The tool handles softwood, hardwood, MDF panels, plywood and plastics such as PVC and acrylic very well. The single-flute design ensures precise cutting without the risk of burning the machined surface.
For a diameter of 10 mm, the optimal spindle speed is 14000–18000 rpm and the feed rate is 1540–3240 mm/min, depending on material hardness. When machining hardwoods, reduce the feed rate by 20-30% and retract the tool every 2-3 cm to improve chip removal.
The single-flute version has 50-60% more chip space, allowing higher feed rates and more effective heat dissipation. The two-flute design produces a smoother surface but requires lower cutting parameters.
