Description
Technical data for the ground wood end mill Ø12 mm
| Technical data | |
|---|---|
| Working diameter d1 | 12 mm |
| Shank diameter d2 | 12 mm |
| Flute length l2 | 35 mm |
| Overall length l1 | 75 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø12 mm wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 603 | 0.216 | 16000 | 3456 |
| NHardwood | 490 | 0.132 | 13000 | 1716 |
| NMDF / plywood | 565 | 0.168 | 15000 | 2520 |

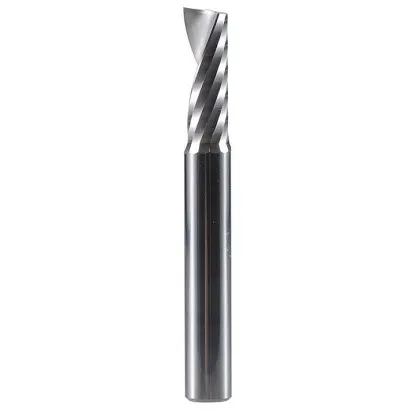

Ø12 mm wood end mill – robust single-flute solid carbide (VHM) for CNC machining
Ø12 mm wood end mill is the strongest tool in this series of solid carbide (VHM) end mills, designed for intensive material removal on CNC machines. The large diameter allows wide slots, large pockets and heavy roughing operations to be completed quickly. The ground single-flute design from manufacturer Horn with upcut geometry ensures efficient upward evacuation of large chip volumes and a clean edge.
Key benefits of the Ø12 mm single-flute end mill
- Maximum cutting productivity – the large diameter reduces machining time for large surfaces and pockets
- Upcut geometry effectively cools the cutting zone and leaves a clean bottom edge
- 50–60% larger flute than in two-flute end mills – reliable evacuation of large chip volumes
- Solid carbide (VHM) core provides 10–20 times longer tool life than HSS tools
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The Ø12 mm carbide wood end mill is ideal for roughing countertops, large pockets, structural components and wide slots. It requires a spindle with sufficient power and rigid clamping, rewarding these with short machining times and high productivity.
This Ø12 mm single-flute end mill is chosen by workshops focused on productivity when machining large workpieces. If you need greater reach, choose the 12 mm Long wood end mill.
Frequently asked questions
The 12 mm end mill is a tool for heavy, productive machining: wide slots, large pockets, countertops and structural components in solid wood, MDF, plywood and plastics such as acrylic. It is particularly suitable for roughing, where rapid material removal is essential.
The recommended spindle speed is 13000–16000 rpm and the feed rate is 1716–3456 mm/min, depending on wood hardness. A larger diameter means higher cutting forces, so a spindle with sufficient power and rigid, secure tool clamping are required.
The standard version has an overall length of 75 mm, providing greater rigidity during roughing. The Long version (l1 = 100 mm) provides additional reach for deeper and thicker workpieces, at the cost of slightly greater susceptibility to vibration at maximum overhang.
