Description
Technical data for the Ø6 mm Long ground wood end mill
| Technical data | |
|---|---|
| Working diameter d1 | 6 mm |
| Shank diameter d2 | 6 mm |
| Flute length l2 | 20 mm |
| Overall length l1 | 100 mm |
| Number of cutting edges | 1 |
Cutting data for the Ø6 mm Long wood end mill
| Material | Cutting speed Vc [m/min] | Feed per tooth fz [mm] | Spindle speed n [rpm] | Total feed rate [mm/min] |
|---|---|---|---|---|
| NSoftwood | 339 | 0.108 | 18000 | 1944 |
| NHardwood | 283 | 0.066 | 15000 | 990 |
| NMDF / plywood | 302 | 0.084 | 16000 | 1344 |

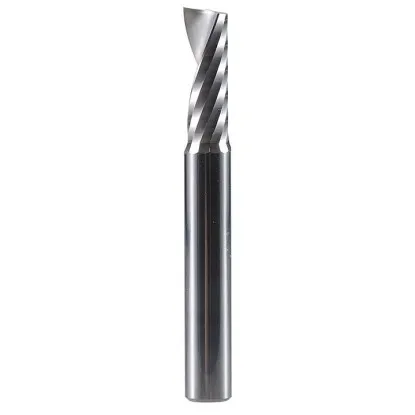

Long end mill for wood Ø6 mm – single-flute solid carbide (VHM) tool for precision machining
Ø6 mm Long wood end mill is a version of the popular 6 mm end mill with solid carbide (VHM) construction, designed for demanding CNC machining. The ground, single cutting edge from Horn with upcut geometry ensures clean cutting, efficient chip evacuation, and repeatable results in series production. The tool excels in applications requiring stable operation and high edge quality.
Key benefits of the Ø6 mm Long single-flute end mill
- Stable, precise cutting – the rigid carbide body limits vibration and improves the finish
- Upcut geometry lifts chips upward and protects the lower edge of the workpiece
- 50–60% larger flute compared with two-flute end mills – no clogging with sawdust
- Solid carbide (VHM) construction guarantees 10–20 times the tool life of HSS tools
- Universal application – solid wood, MDF, plywood, plastics and acrylic
The long Ø6 mm carbide end mill for wood excels at milling grooves, pockets, and joints, as well as cutting out furniture parts. The high positive rake angle reduces cutting forces, resulting in lower spindle load and longer tool life.
This single-flute Ø6 mm end mill is chosen by CNC operators who value clean edges and repeatability.
Frequently asked questions
It is a versatile tool for milling grooves, pockets, and joints, as well as cutting out parts in solid wood, MDF, plywood, and plastics such as acrylic. The 6 mm diameter provides an excellent balance between cutting efficiency and edge quality.
The recommended spindle speed is 15000–18000 rpm, with a feed rate of 990–1944 mm/min depending on wood hardness. In harder species, reduce the feed rate and reach the required depth in several passes to improve chip evacuation and maintain edge quality.
The end mill machines softwood, hardwood, MDF, plywood, and plastics, including acrylic and PVC. The single-flute design ensures precise cutting without scorching, while the enlarged flute enables high feed rates without clogging.
